Дънна платка ASRock Z890 Steel Legend WIFI

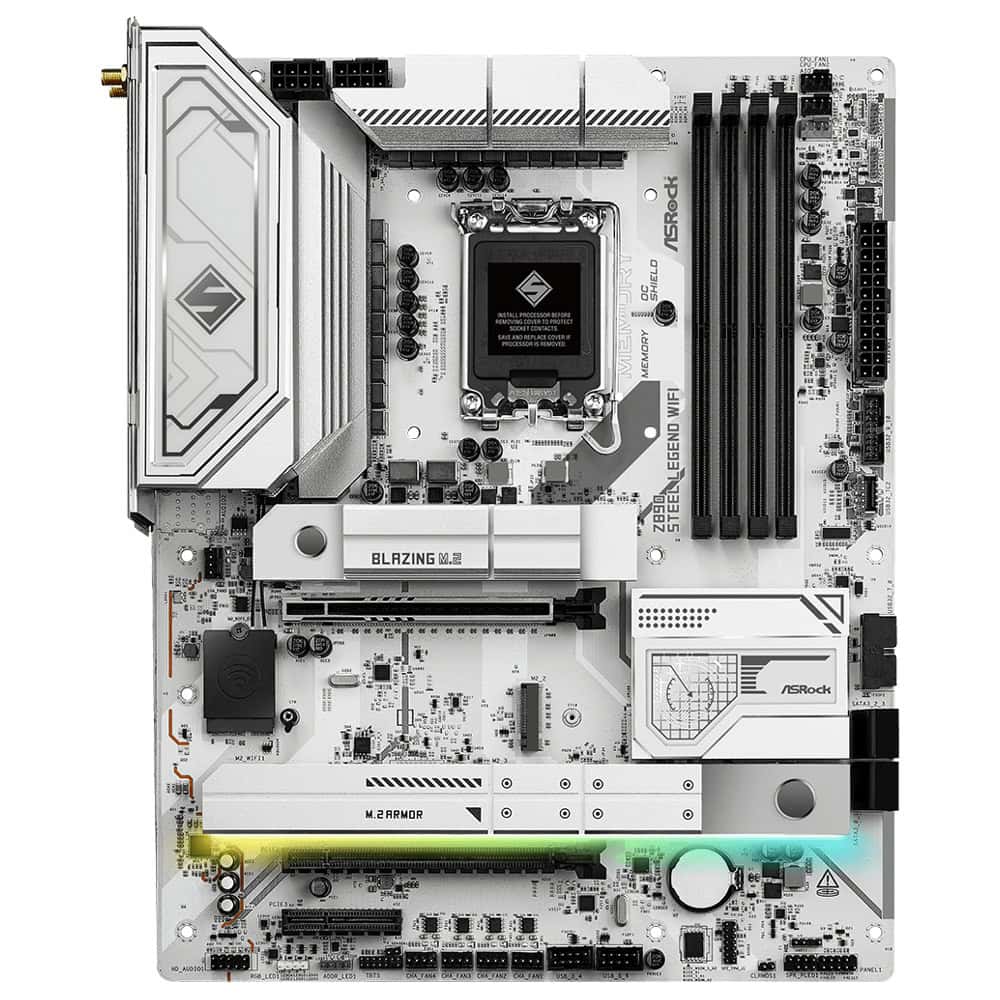

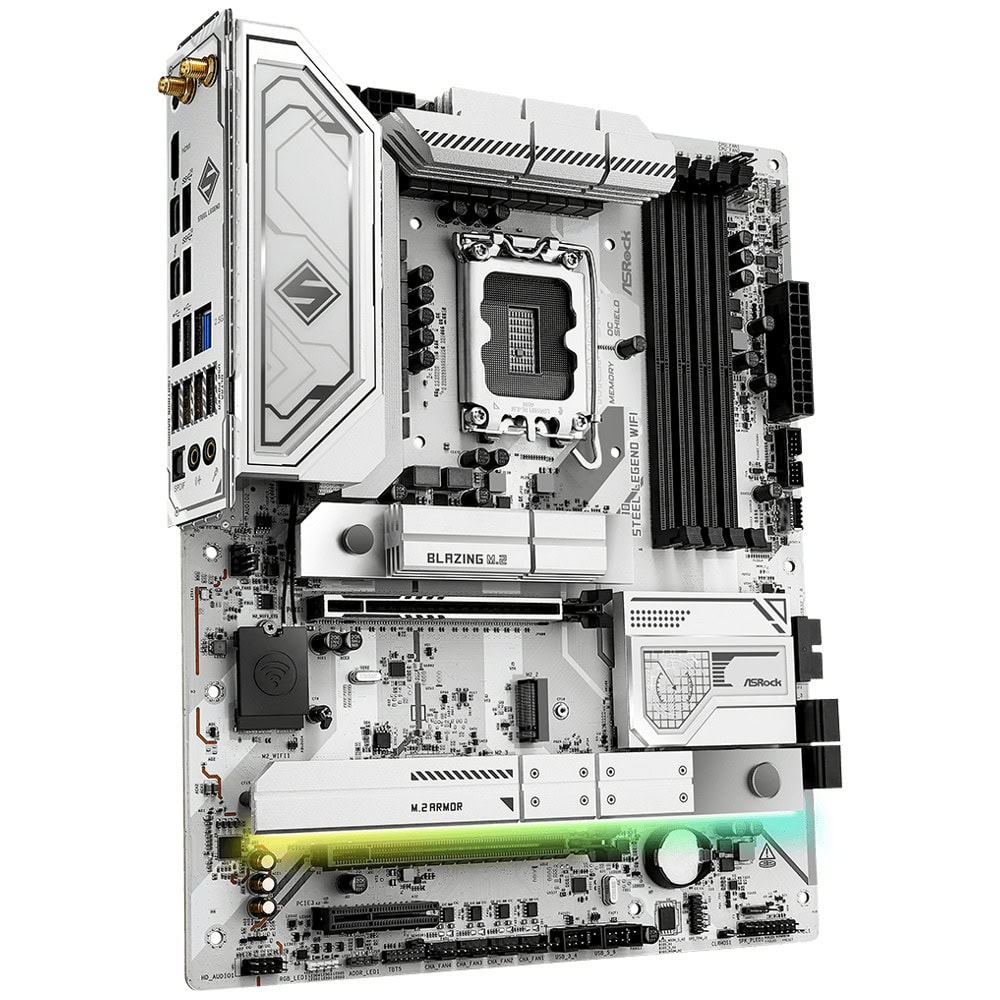

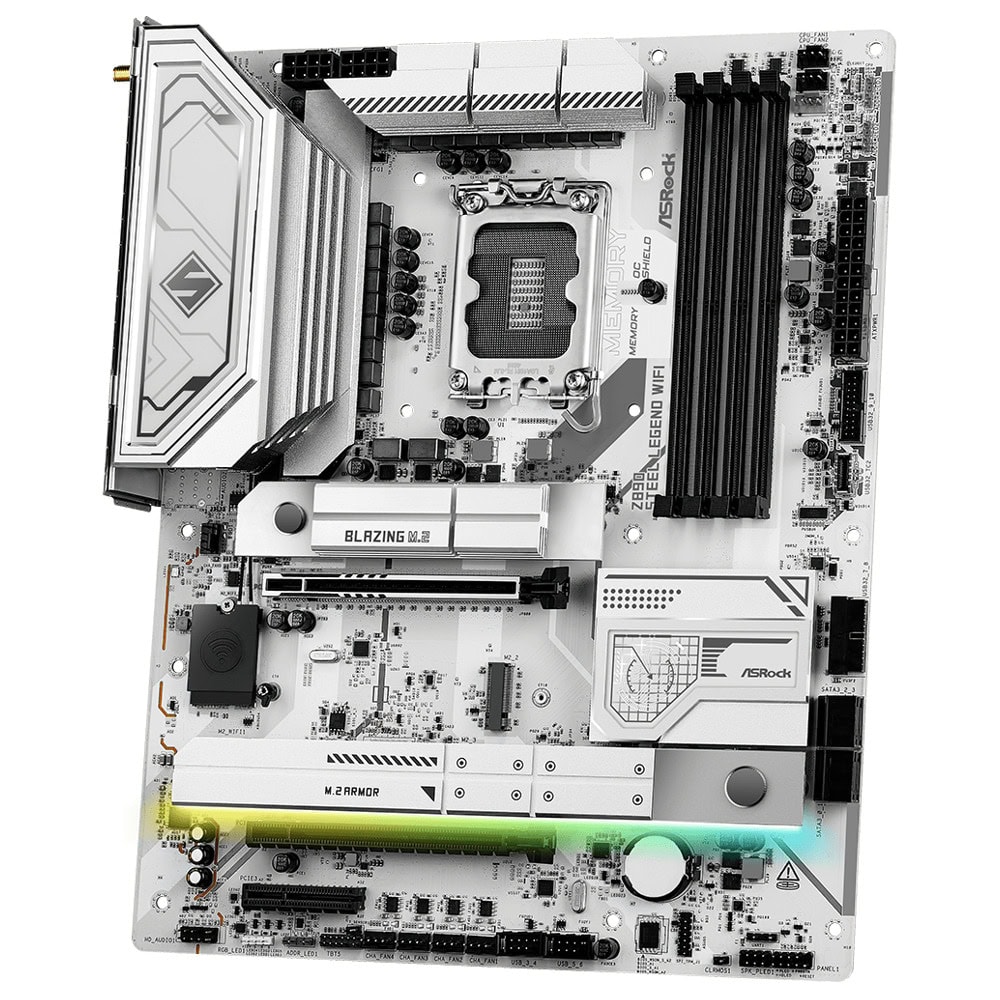

Z890 Steel Legend WiFi

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
• 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA
• 4 x DDR5 DIMMs Supports Dual Channel, up to 9466+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x4
• Graphics Output Options: 1 HDMI 2 Thunderbolt™ 4 Type-C
• Realtek ALC1220 7.1 CH HD Audio Codec Nahimic Audio
• 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 2 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)

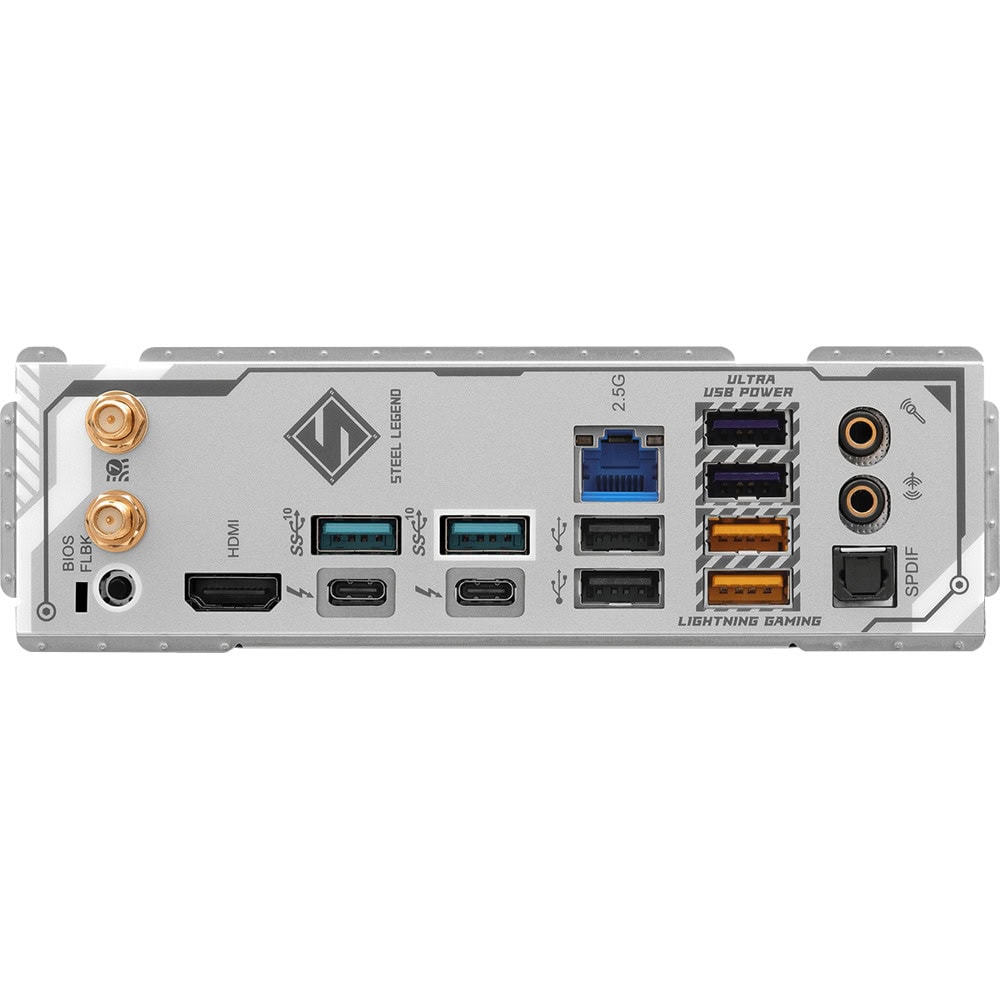

• 2 Thunderbolt™ 4 Type-C (Rear) 1 USB 3.2 Gen2x2 Type-C (Front) 2 USB 3.2 Gen2 Type-A (Rear) 8 USB 3.2 Gen1 (4 Rear, 4 Front) 6 USB 2.0 (2 Rear, 4 Front)
• Realtek 2.5G LAN
• Intel® 802.11be Wi-Fi 7 + Bluetooth
• Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance

Exclusive 20K Cap with 1000uF Capacitance

The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:

●Higher Capacitance: Greater charge storage for better support under high loads.

●Lower Ripple: Reduced power output fluctuations, improving quality.

●More Stable Output Current: Stable power supply, minimizing voltage impacts.

●Better Performance & System Stability: Increased reliability and consistent performance.

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Extreme Memory Overclocking

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Enlarged M.2 Heatsink

XXL M.2 Heatsink with Toolless Design

The extra-large aluminum alloy M.2 heatsink with toolless design is a user friendly quick release mechanism that helps installing M.2 SSD super easy & simple.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
