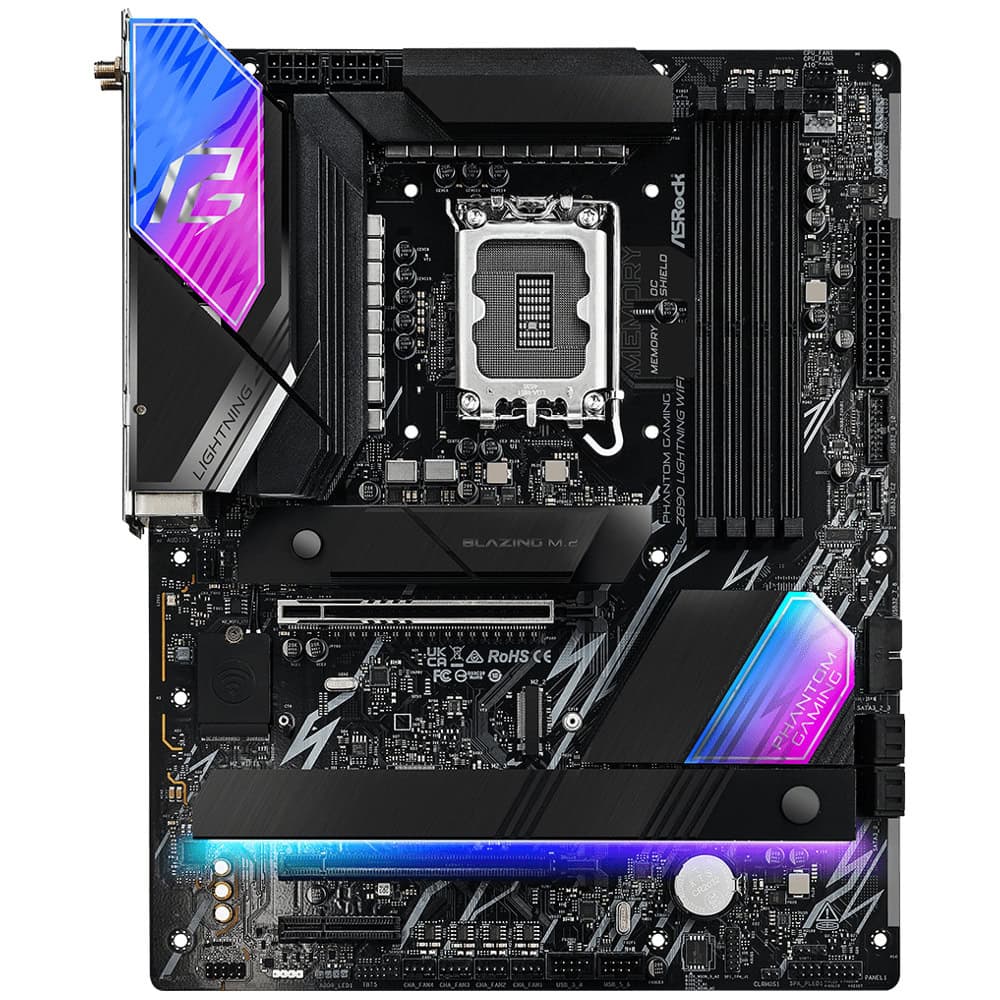

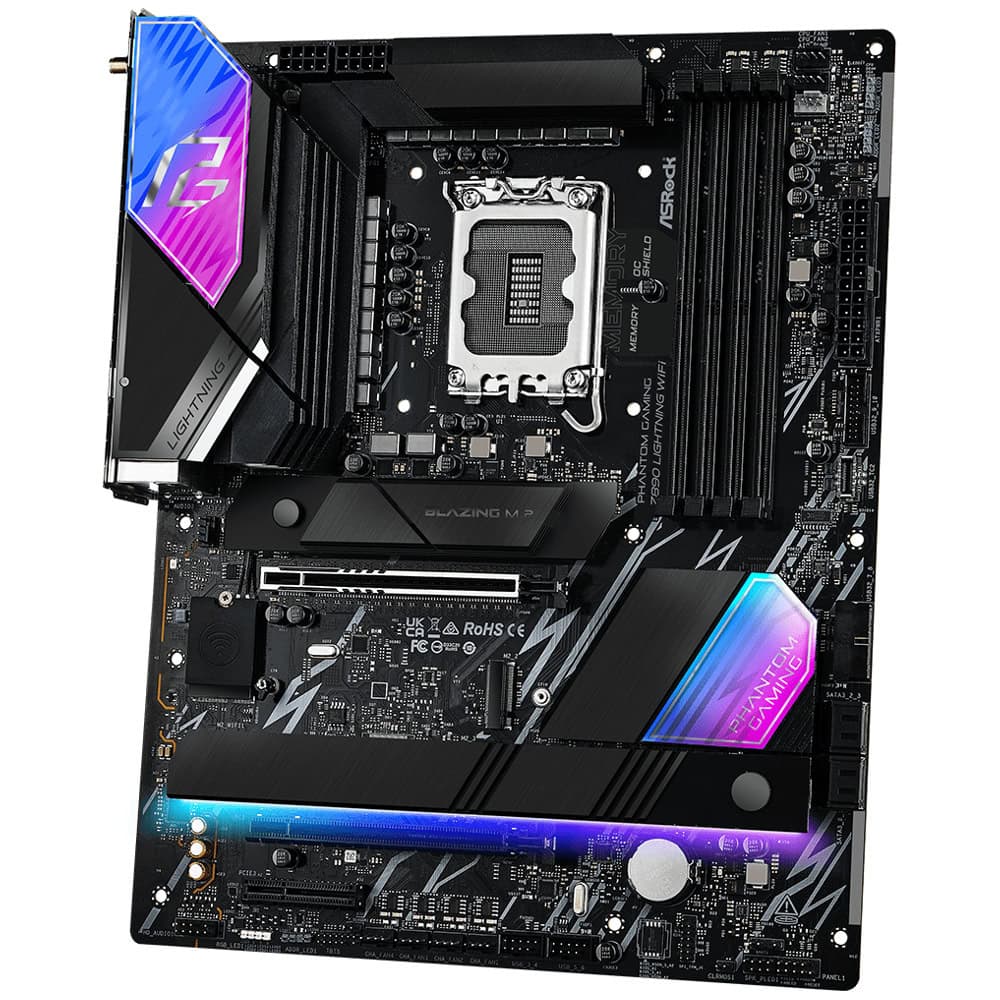

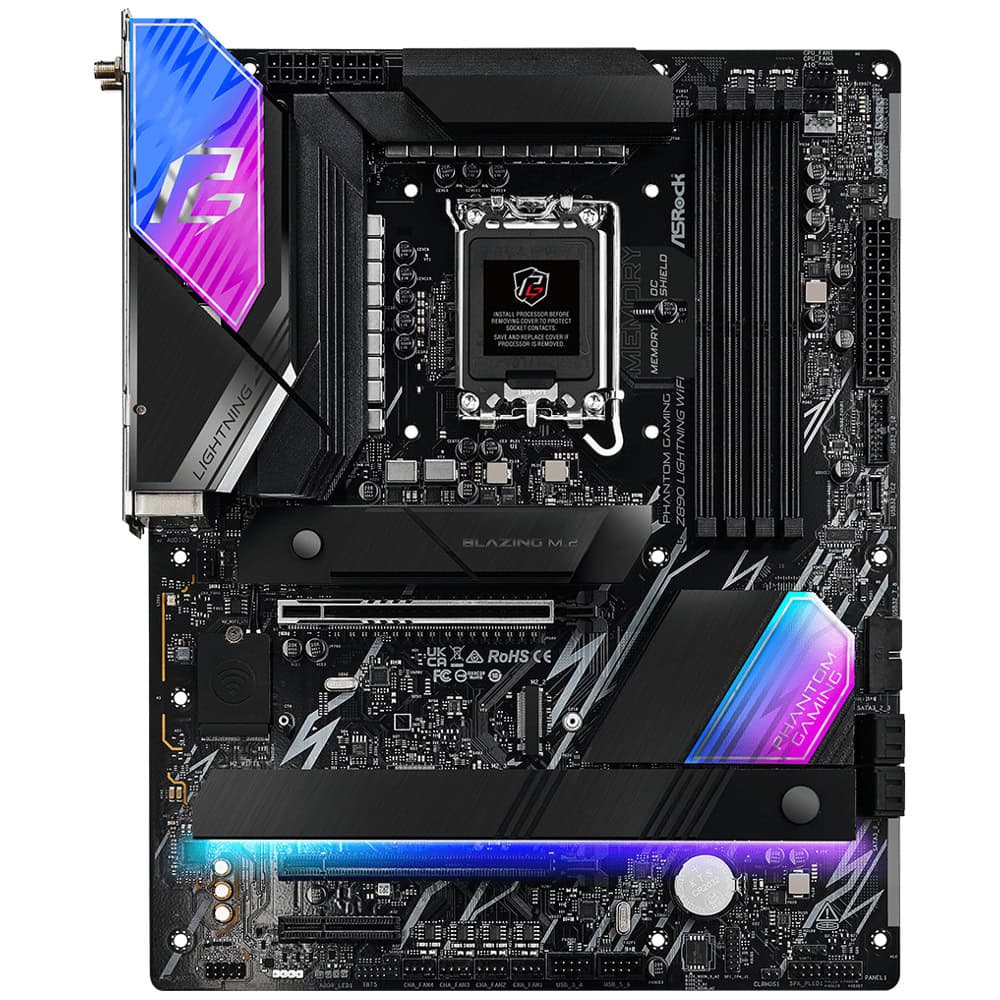

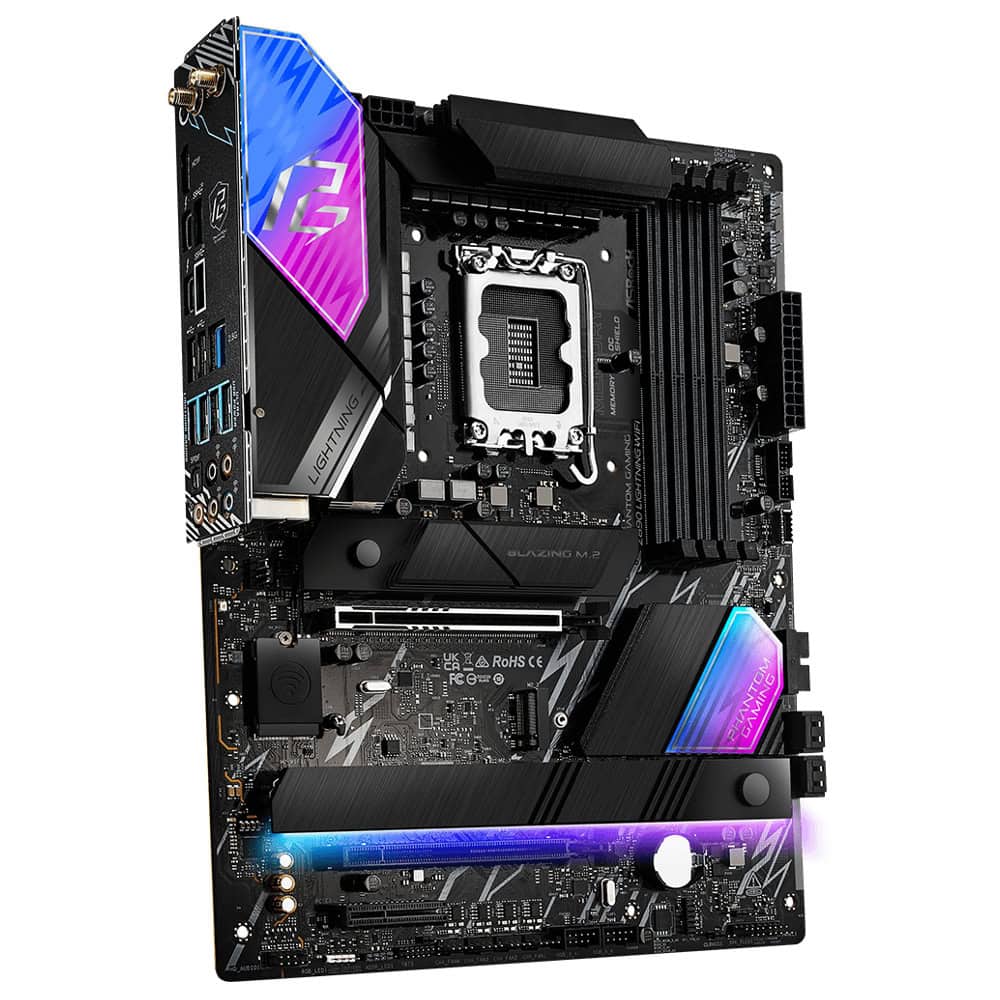

Дънна платка ASRock Z890 PG Lightning WiFi

PHANTOM GAMING

Z890 Lightning WiFi

Lightning series stands as a symbol of both speed and power. The design employs linear and angular elements, evoking the imagery of lightning – a spectacle of raw energy and breathtaking speed.

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
• 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA
• 4 x DDR5 DIMMs Supports Dual Channel, up to 9466+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x4
• Graphics Output Options: 1 HDMI 2 Thunderbolt™ 4 Type-C
• Realtek ALC1220 7.1 CH HD Audio Codec Nahimic Audio
• 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 2 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)

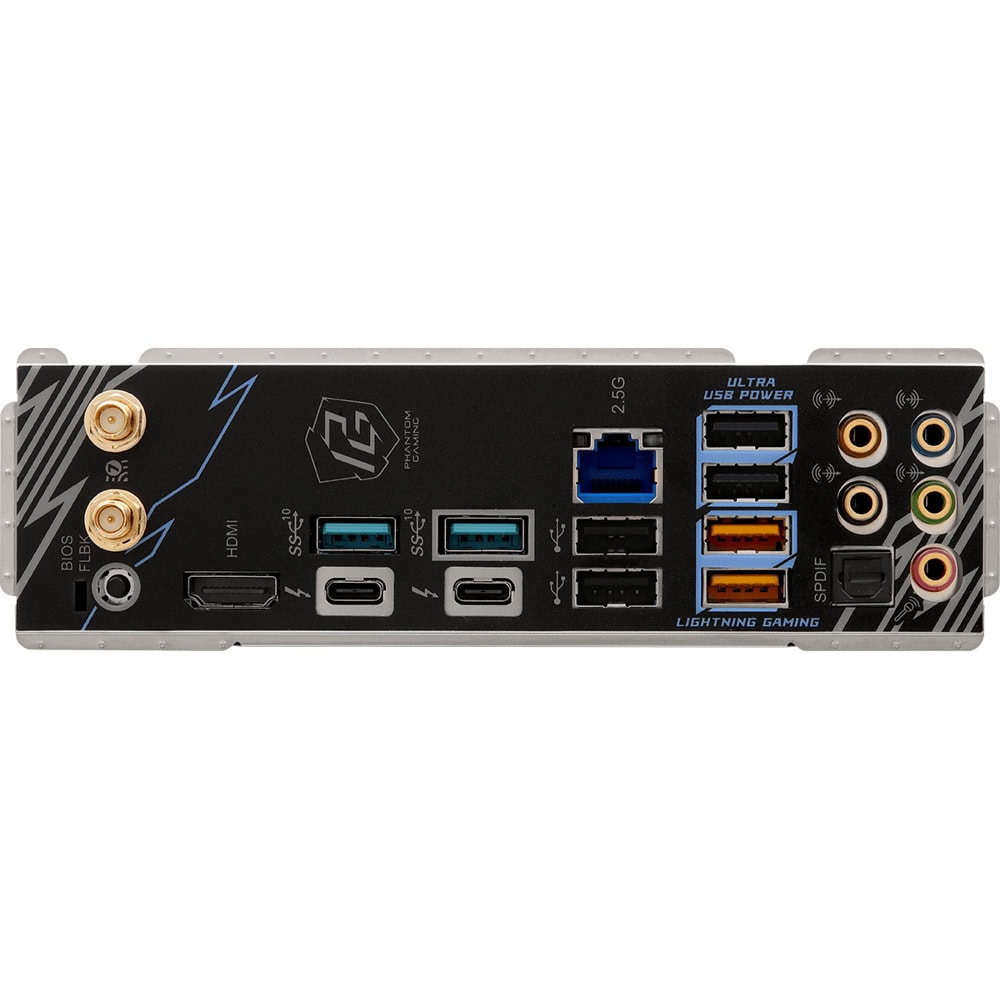

• 2 Thunderbolt™ 4 Type-C (Rear) 1 USB 3.2 Gen2x2 Type-C (Front) 2 USB 3.2 Gen2 Type-A (Rear) 8 USB 3.2 Gen1 (4 Rear, 4 Front) 6 USB 2.0 (2 Rear, 4 Front)
• Killer 2.5G LAN
• Intel® 802.11be Wi-Fi 7 + Bluetooth
• Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance

Exclusive 20K Cap with 1000uF Capacitance

The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:

●Higher Capacitance: Greater charge storage for better support under high loads.

●Lower Ripple: Reduced power output fluctuations, improving quality.

●More Stable Output Current: Stable power supply, minimizing voltage impacts.

●Better Performance & System Stability: Increased reliability and consistent performance.

18+1+1+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Extreme Memory Overclocking

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Thunderbolt™ 4 Type-C

Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Front Panel USB 3.2 Gen2x2 Type-C Header

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
