ASRock

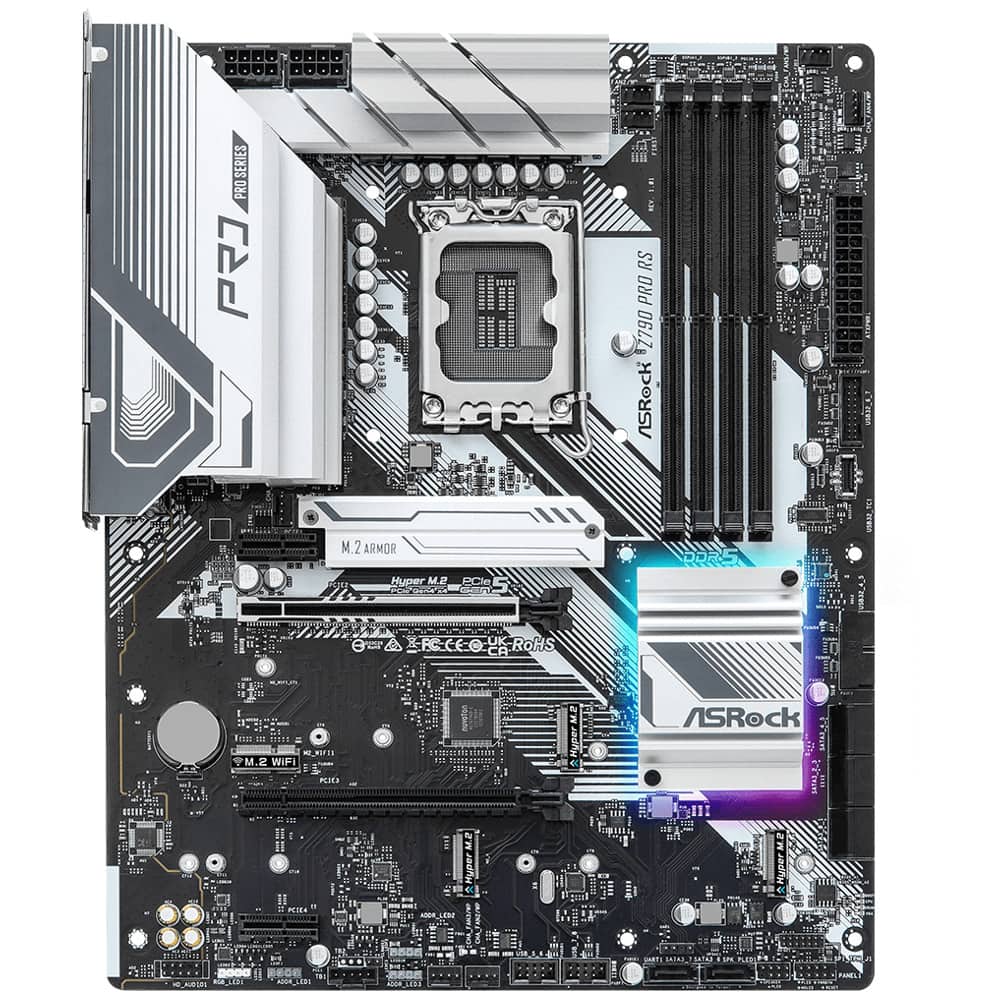

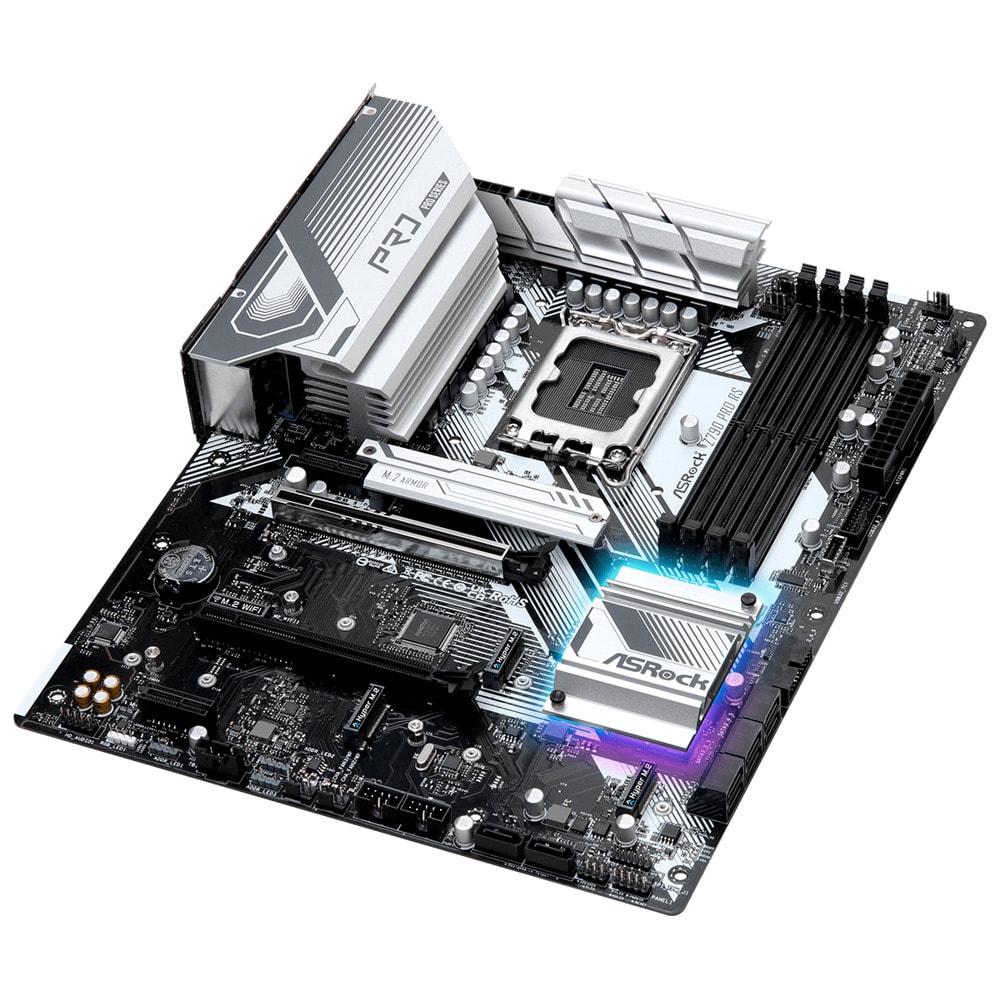

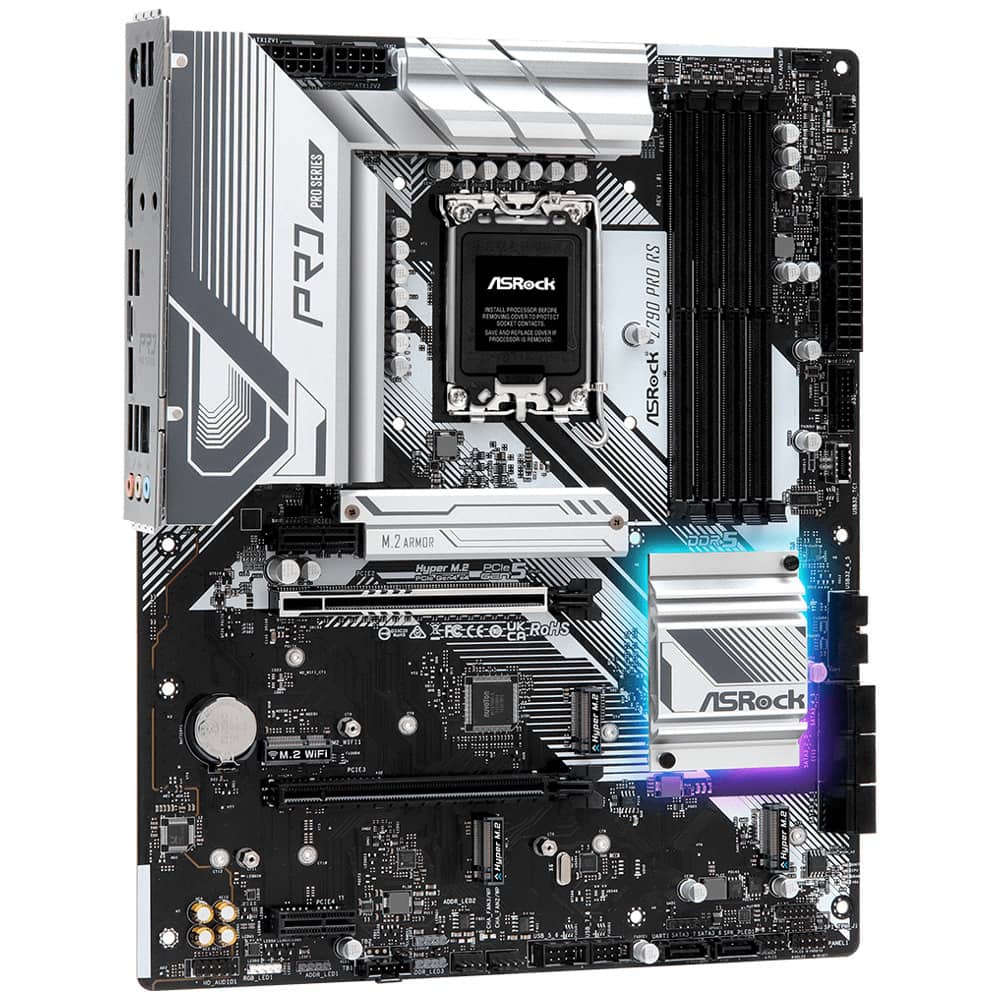

Дънна платка ASRock Z790 Pro RS
Артикул №: 1000126637
Категория:
Компютърни компоненти
203,99 €
✓ Налично във външен склад
Характеристики
| Supports Intel® Hybrid Technology | Да |
| Supports Intel® Turbo Boost Max | 3.0 Technology |
| Supports Intel® Thermal Velocity Boost (TVB) | Да |
| Supports Intel® Adaptive Boost Technology (ABT) | Да |
| Чипсет | Да |
| Intel® Z790 | Да |
| Памет | Да |
| Dual Channel DDR5 Memory Technology | Да |
| X DDR5 DIMM Slots | 4 |
| Supports DDR5 non-ECC, un-buffered memory up to | 7200+(OC)* |
| Max. capacity of system memory | 128GB |
| Supports Intel® Extreme Memory Profile (XMP) | 3.0 |
| 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively | Да |
| 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively | Да |
| 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively | Да |
| 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively | Да |
| BIOS | Да |
| 128Mb AMI UEFI Legal BIOS with GUI support | Да |
| Графика | Да |
| Intel® Xe Graphics Architecture (Gen | 12) |
| X eDP 1.4, supports max. resolution up to Full HD 60Hz | 1 |
| Аудио | Да |
| CH HD Audio (Realtek ALC897 Audio Codec) | 7.1 |
| Nahimic Audio | Да |
| Мрежова карта | Да |
| Gigabit LAN 10/100/1000/2500 Mb/s | 2.5 |
| Dragon RTL8125BG | Да |
| Supports Dragon | 2.5G LAN Software |
| Smart Auto Adjust Bandwidth Control | Да |
| Visual User Friendly UI | Да |
| Visual Network Usage Statistics | Да |
| User Customized Priority Control | Да |
| Slots | Да |
| Процесор | 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode* |
| Чипсет | 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire™ *Supports NVMe SSD as boot disks Storage |
| Процесор | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
| Чипсет | 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 8 x SATA3 6.0 Gb/s Connectors RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices USB 1 x USB 3.2 Gen2x2 Type-C (Front) 1 x USB 3.2 Gen2 Type-C (Rear) 1 x USB 3.2 Gen2 Type-A (Rear) 6 x USB 3.2 Gen1 (2 Rear, 4 Front) 8 x USB 2.0 (4 Rear, 4 Front) Connector 1 x eDP Signal Connector 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) Rear Panel I/O 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 2oz Copper PCB OS Microsoft® Windows® 10 64-bit / 11 64-bit *Windows® 10 only supports version 21H2 or later |
