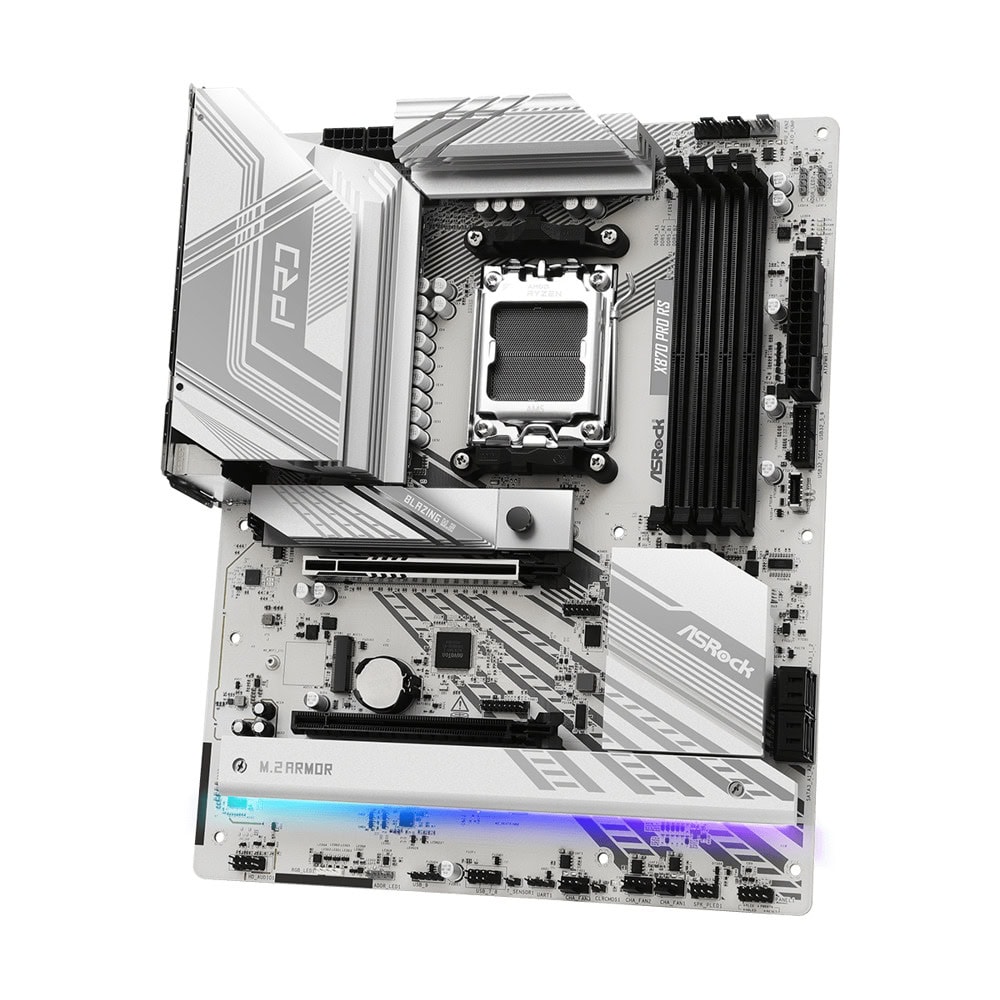

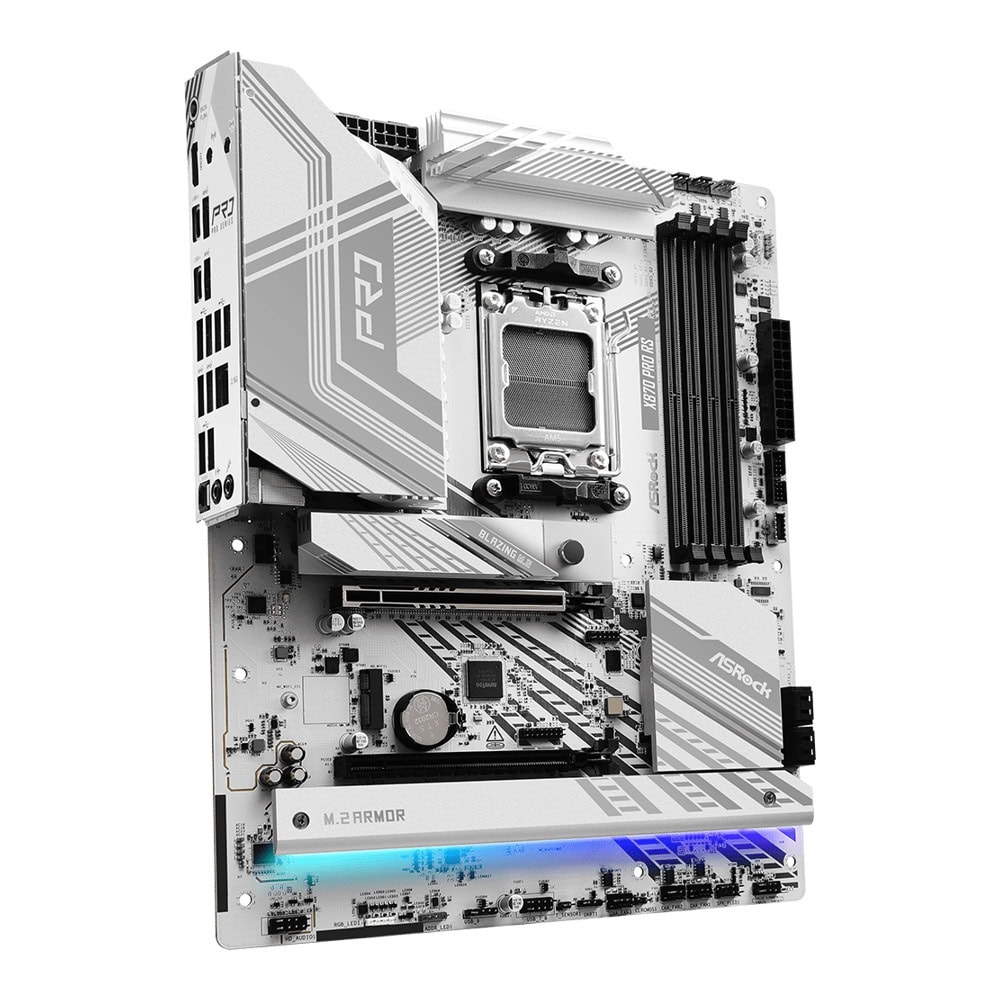

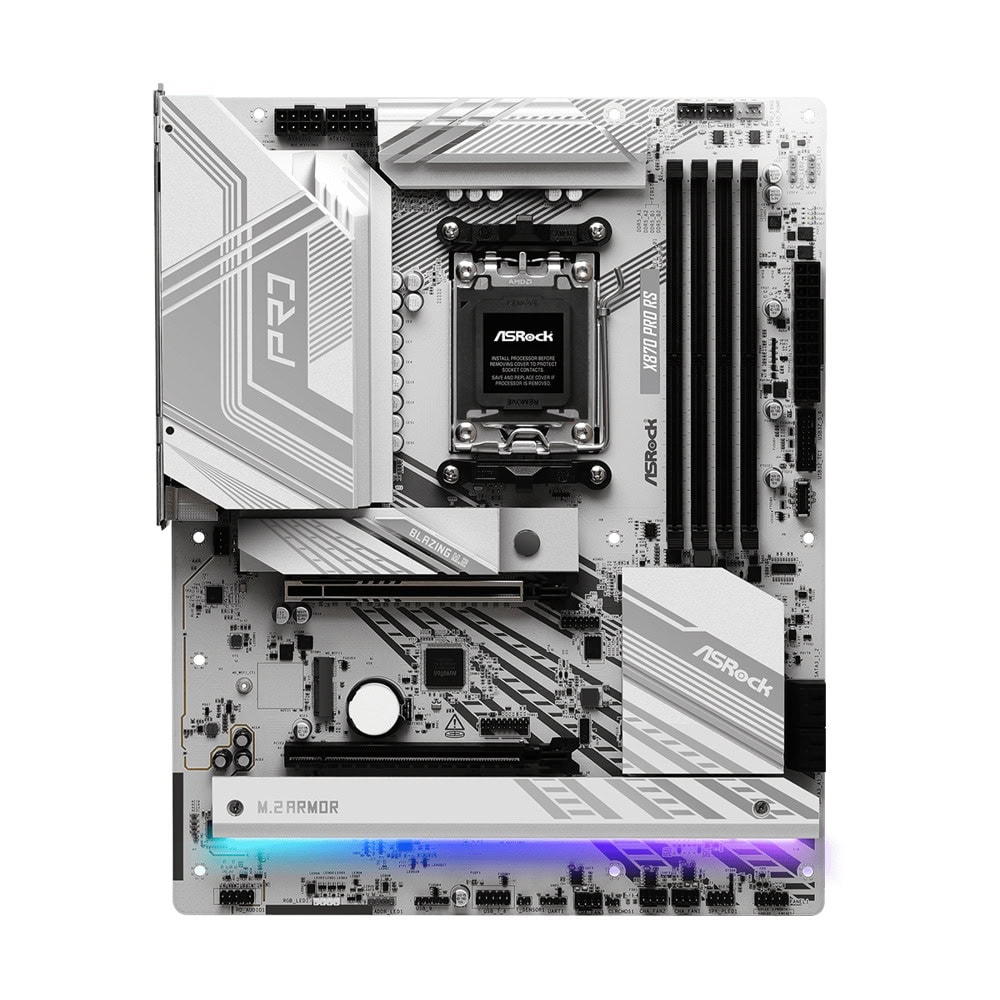

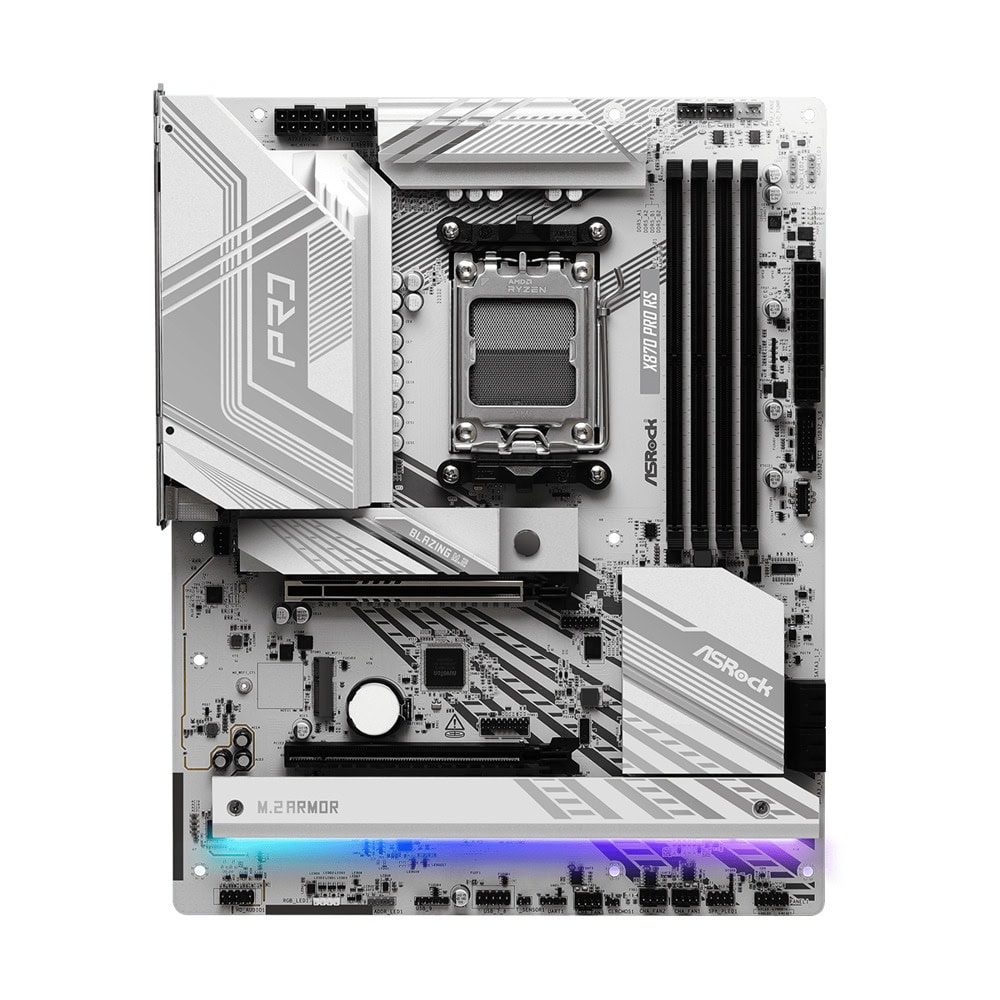

Дънна платка ASRock X870 Pro RS

ASRock X870 Pro RS

90-MXBPZ0-A0UAYZ

CPU

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

* The availability of expansion slots may vary by CPU.

Chipset

- AMD X870

Memory

- Dual Channel DDR5 Memory Technology

- 4x DDR5 DIMM Slots

- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*

- Max. capacity of system memory: 256GB

- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA graphics (Actual support may vary by CPU)

- 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

- 2x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*

* Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen 9000, 8000 and 7000 processors with embedded graphics.

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

- Impedance Sensing on Rear Out port

- Individual PCB Layers for R/L Audio Channel

- Nahimic Audio

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Dragon RTL8125BG

- Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and Streaming Modes

- User Customized Priority Control

Slots

CPU:

- 1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*

- 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- Supports AMD CrossFire

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.

If M2_2 is occupied, PCIE2 will be disabled.

Supports NVMe SSD as boot disks

Storage

CPU:

- 1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

- 1x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

- 1x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

- 2x SATA3 6.0 Gb/s Connectors ASMedia ASM1061:

- 2x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks.

M2_1 is the first priority for M.2 installation.

M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.

If M2_2 is occupied, PCIE2 will be disabled.

If SATA3_1 or SATA3_2 is occupied, M2_3 will downgrade to Gen3x2 mode.

RAID

- Supports RAID 0 and RAID 1 for SATA storage devices

- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

* Requires additional M.2 NVMe expansion cards to support RAID 10

USB

CPU:

- 2x USB4 Type-C (Rear)

- 2x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2))

Chipset:

- 1x USB 3.2 Gen2x2 Type-C (Front)

- 4x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front)

- 9x USB 2.0 (6 Rear, 3 Front)

* All USB ports support ESD Protection

Connector

- 1x Thermistor Cable Header

- 1x Power LED and Speaker Header

- 1x RGB LED Header*

- 3x Addressable LED Headers**

- 2x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***

- 4x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***

- 1x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

- 1x 24 pin ATX Power Connector

- 2x 8 pin 12V Power Connectors (Hi-Density Power Connector)

- 1x Front Panel Audio Connector

- 2x USB 2.0 Headers (Support 3 USB 2.0 ports)

- 1x USB 3.2 Gen 1 Header (Supports 2 USB 3.2 Gen1 ports)

- 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

* Supports in total up to 12V/3A, 36W LED Strip

** Support in total up to 5V/3A, 15W LED Strip

*** CPU_FAN1 supports the fan power up to 1A (12W).

CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).

CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

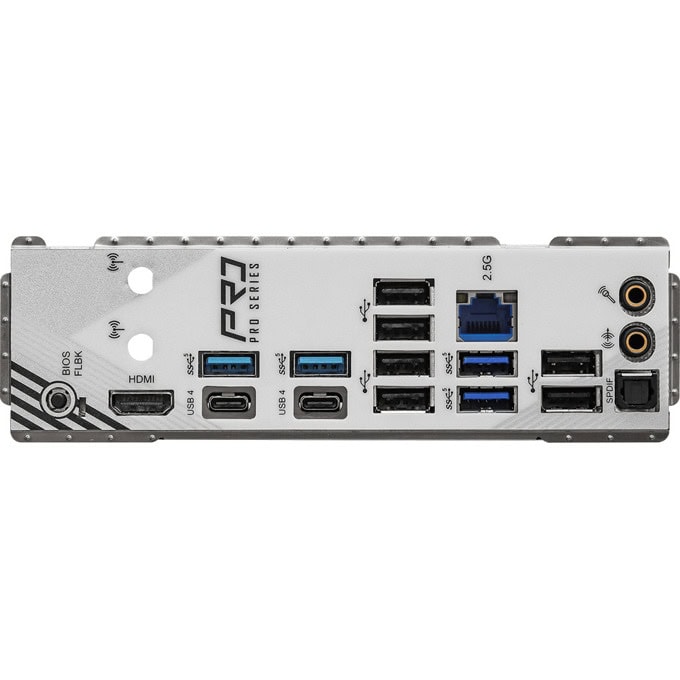

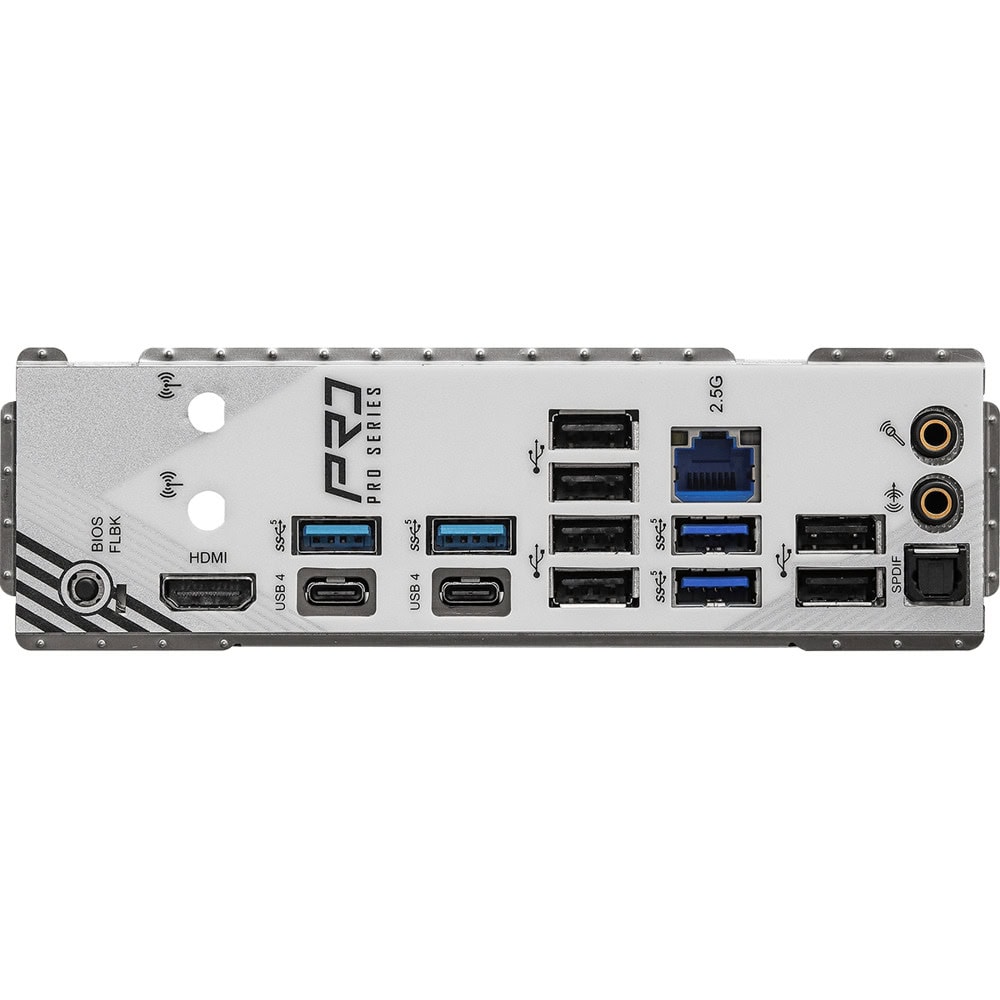

Rear Panel I/O
