Дънна платка ASRock WRX90 WS EVO

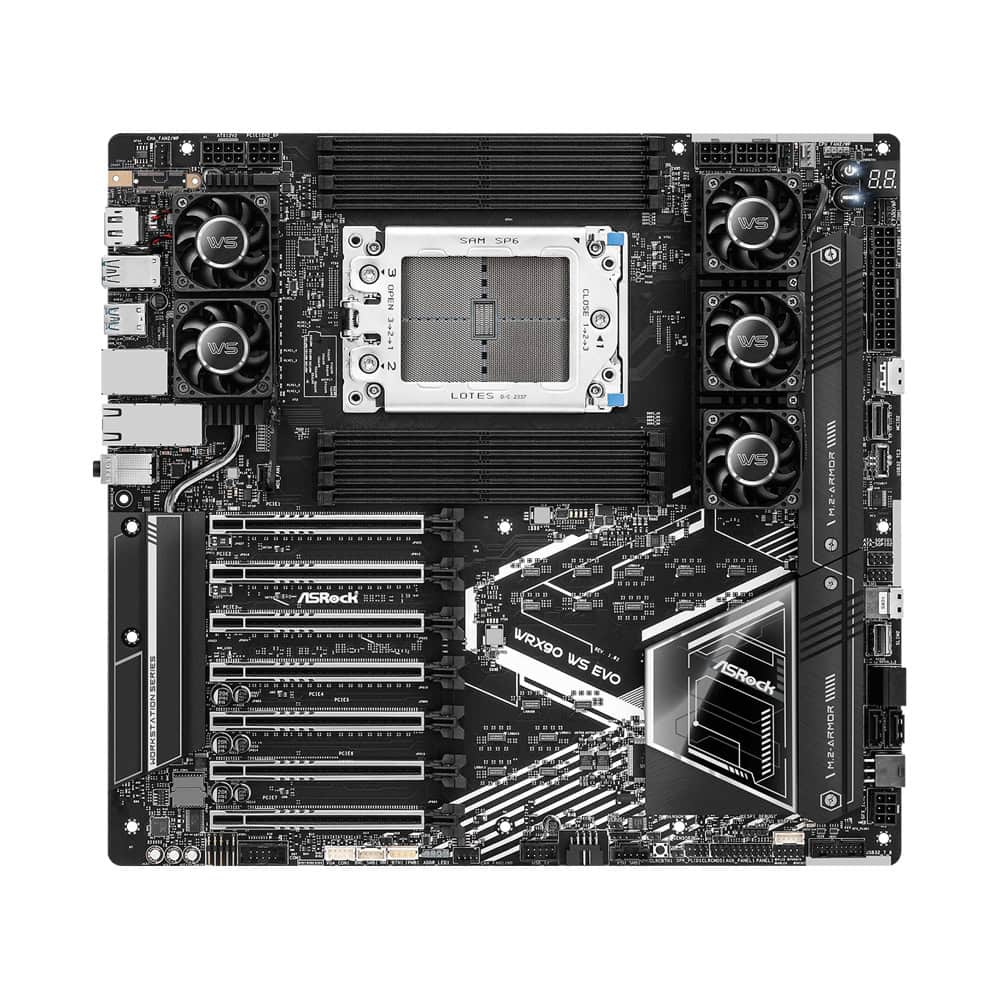

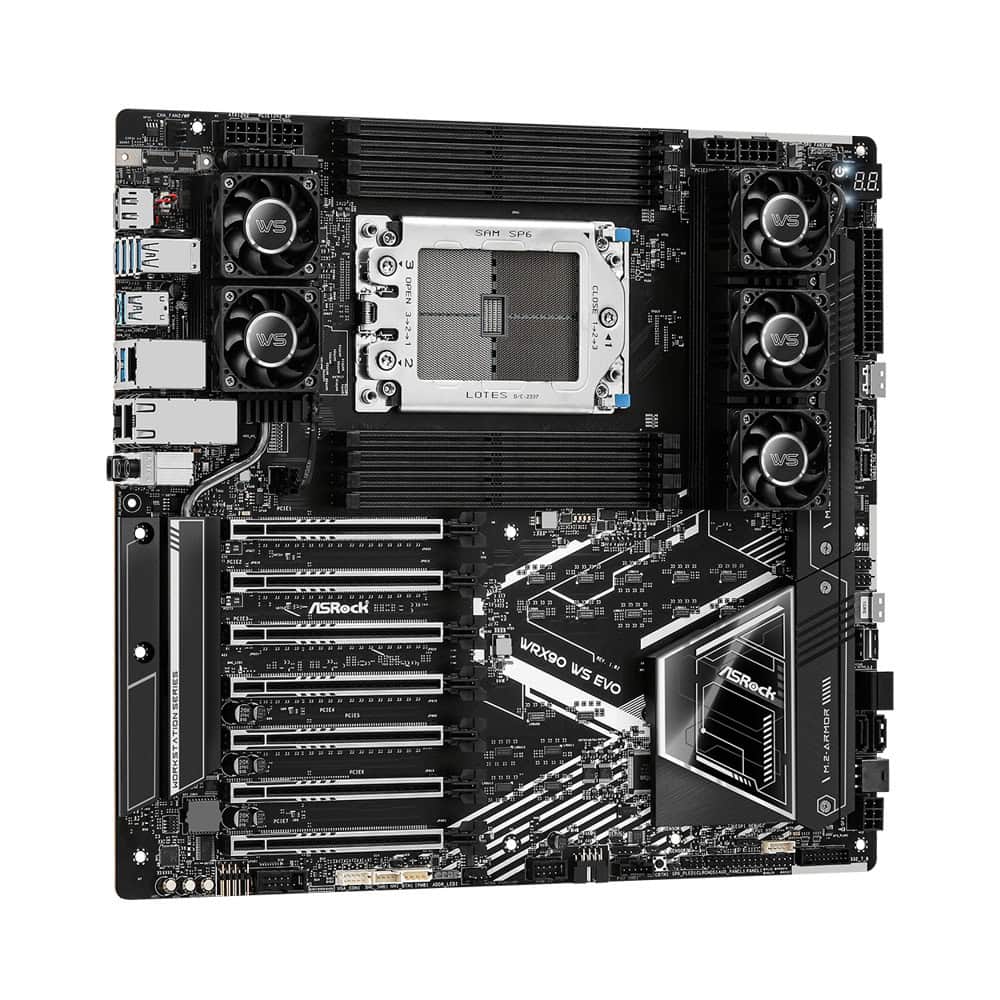

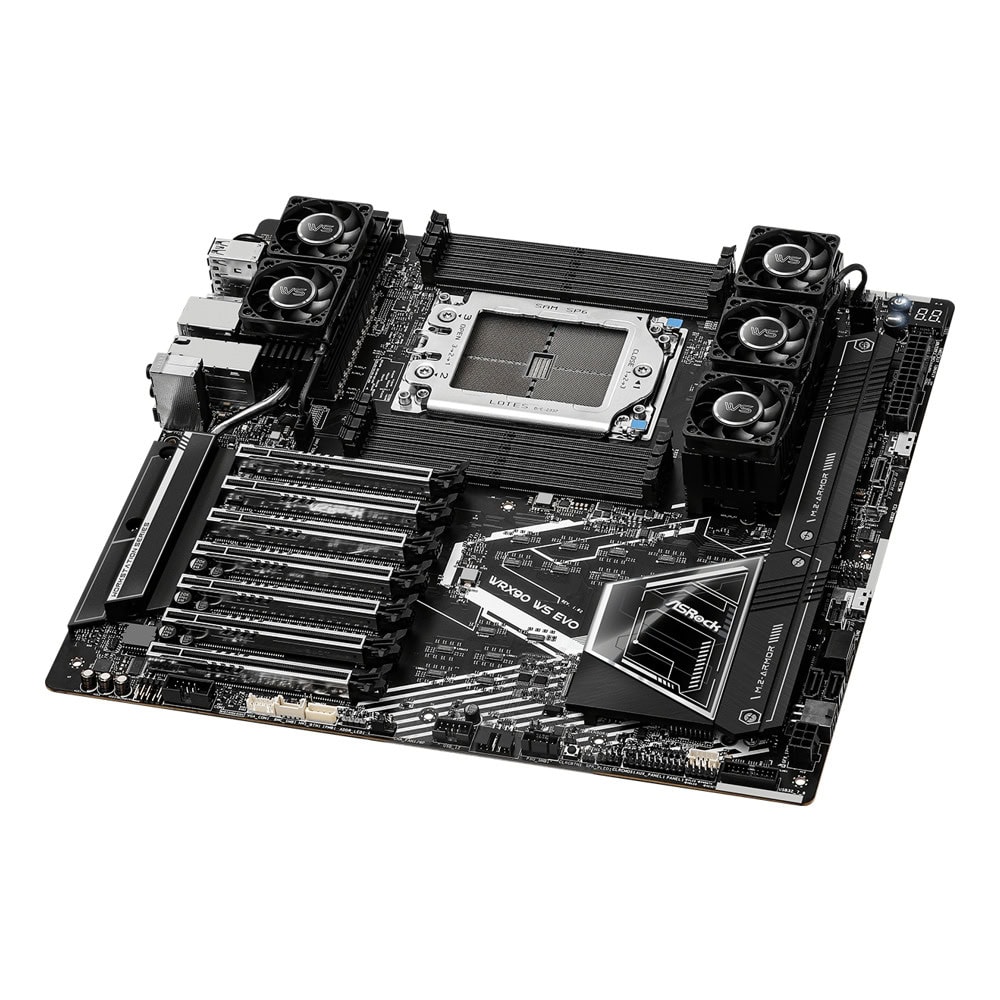

ASRock WRX90 WS EVO
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
14 Layer PCB
The 14 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
Composite VRM Heatsink
It is equipped with a composite VRM heatsink active cooling fans, XXL aluminum heatsinks and heat pipe for maximum heat dissipation.
7 x PCIe Gen5 x16
With AMD Ryzen™ Threadripper™ PRO processors, ASRock WRX90 WS EVO supports 7 PCIe gen5 x16 slots, deliver all the performance of PCIe 5.0 to your GPU and add-on cards. Fullfill all the professional design, deep learning, simulation and rendering applications.
DDR5 ECC Memory Support
Supports 8 DIMMs DDR5 RDIMM ECC Memory overclocking with max capacity of 2TB. It can automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Server Grade Storage Connections
Equipped with SlimSAS(SFF-8654) and the latest MCIO server grade connections for fast and stable storage expansions.
Характеристики
| Chipset - AMD WRX90 | Да |
| BIOS - | 256Mb AMI UEFI Legal BIOS with GUI support |
| LAN 2 | x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel® X710-AT2) - Support PXE 1 x Dedicated IPMI (Realtek RTL8211F) |
| Slots CPU | - 7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8) * - 15μ Gold Contact in VGA PCIe Slots * Supports NVMe SSD as boot disks |
| Storage CPU | - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode * - 2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s) - 1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode * - 1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4) - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks |

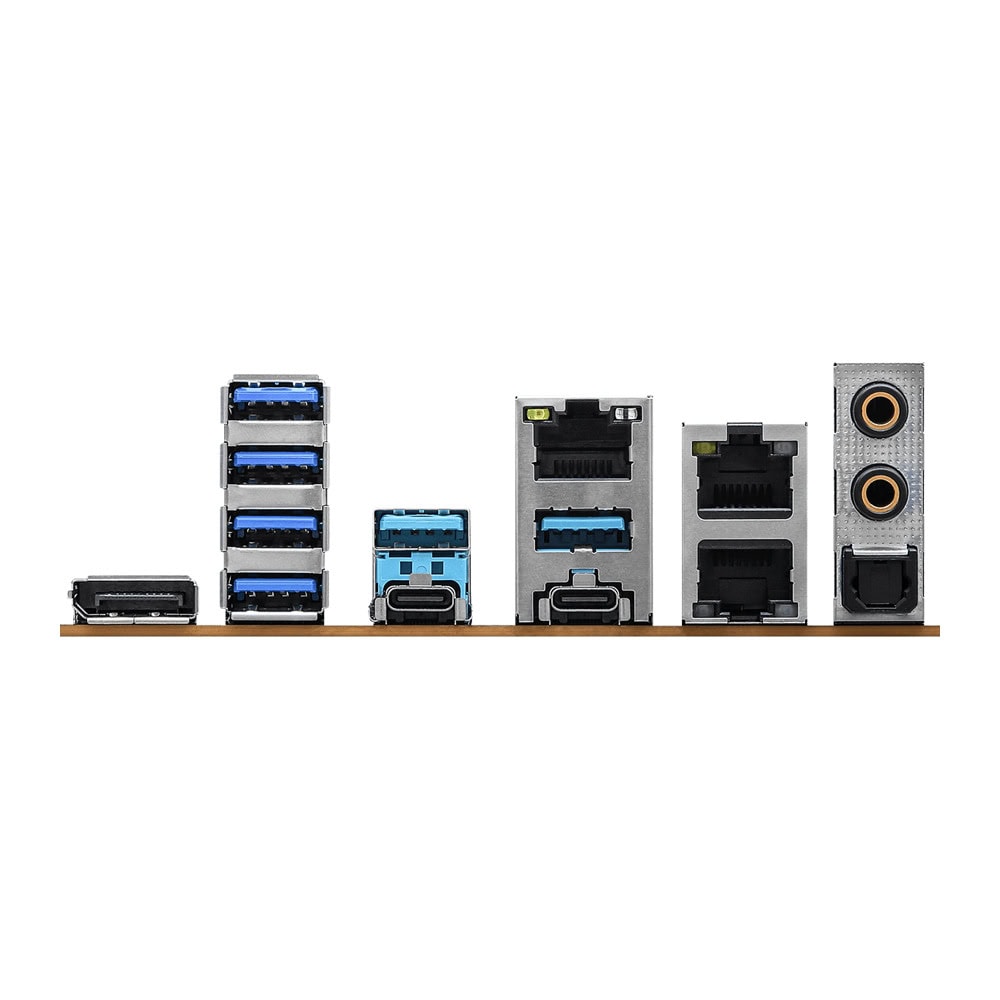

| USB CPU | - 2 x USB4 Type-C (Rear) - 4 x USB 3.2 Gen2 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 4 x USB 2.0 (Front) * All USB ports support ESD Protection |
| Form Factor - EEB Form Factor | 12.0-in x 13.0-in, 30.5 cm x 33.0cm - 14 Layer PCB - 2oz Copper PCB |
| OS - Microsoft Windows | 11 64-bit |
