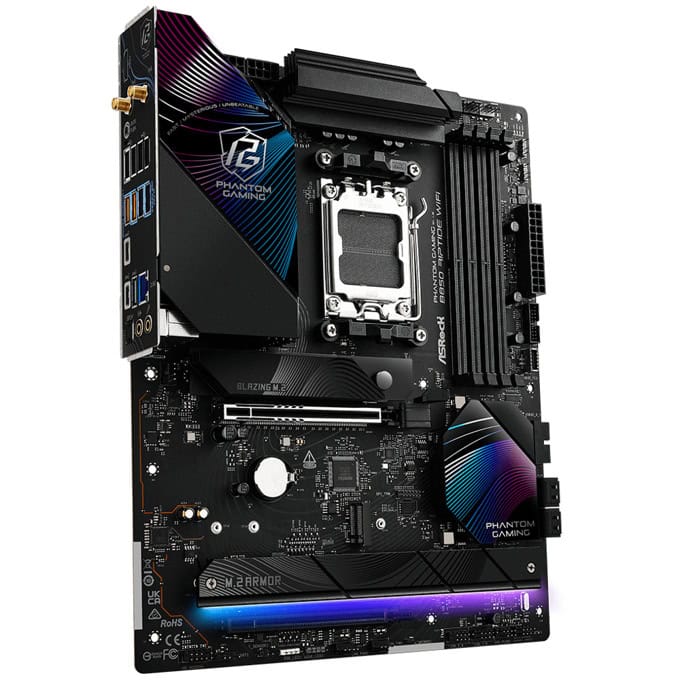

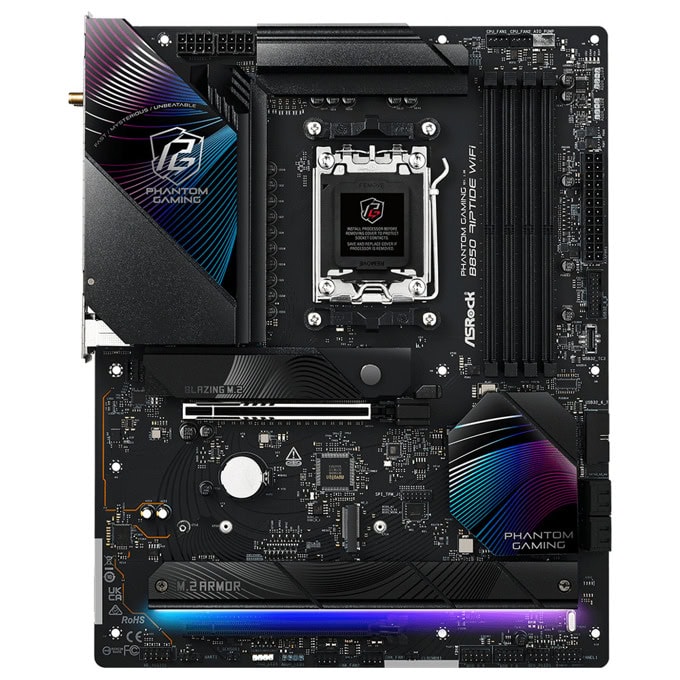

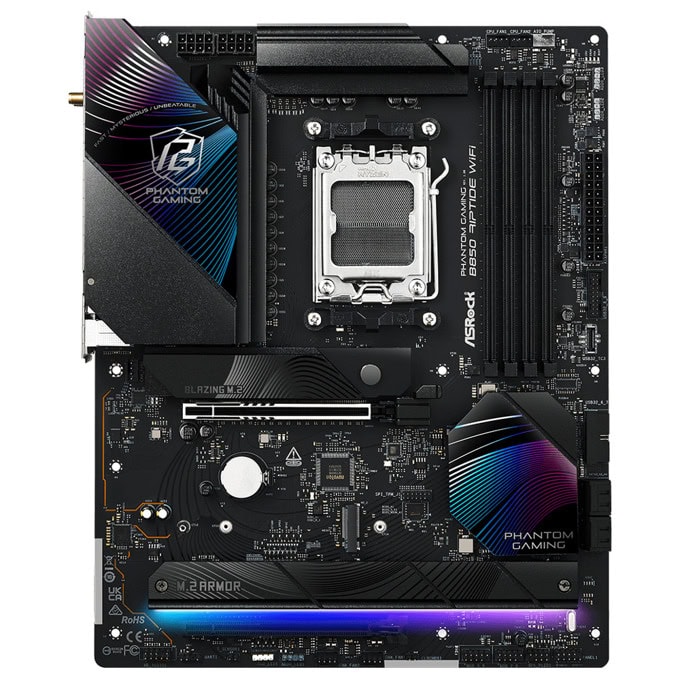

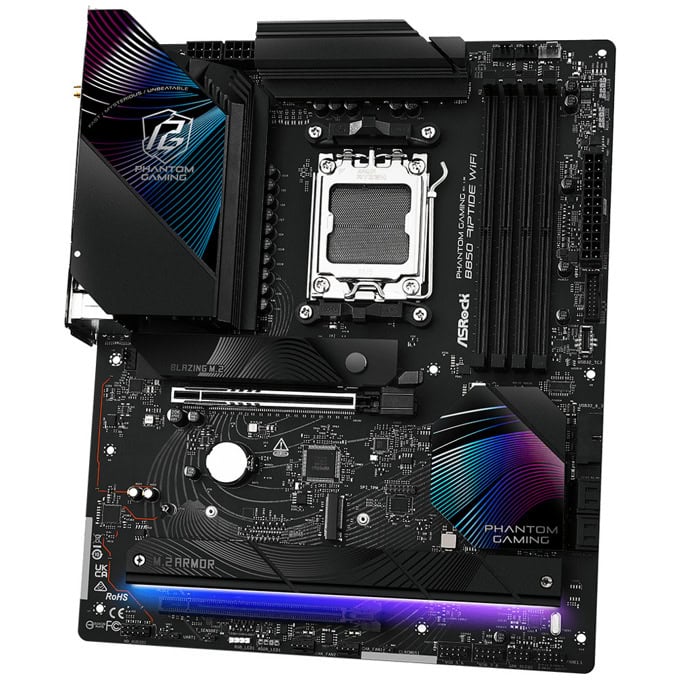

Дънна платка ASRock B850 Riptide WIFI

PHANTOM GAMING

B850 Riptide WiFi

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

• Unique Feature Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming - Killer 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer
• CPU - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors * * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
• Chipset - AMD B850
• Memory - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - Individual PCB Layers for R/L Audio Channel - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) - Nahimic Audio
• LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software
• Wireless LAN - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz * frequency band - Supports 160MHz channel bandwidth with 6GHz * frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO * The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
• Slots CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode * Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode * - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. If M2_4 is occupied, PCIE2 will be disabled. Supports NVMe SSD as boot disks
• Storage CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode * - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode * Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode * - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode * ASMedia ASM1061: - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors. If M2_4 is occupied, PCIE2 will be disabled.
• RAID - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
• USB CPU: - 2 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3)) - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4)) - 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection
• Connector - 1 x SPI TPM Header - 1 x Thermistor Cable Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header * - 3 x Addressable LED Headers ** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) *** - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) *** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) *** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

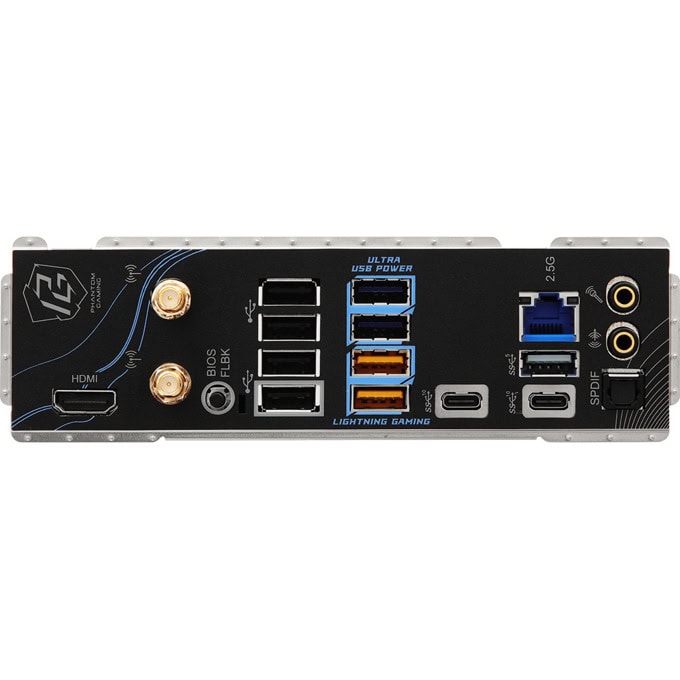

• Rear Panel I/O - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s) - 3 x USB 3.2 Gen1 Type-A Ports * - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) ** - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) * USB32_12 are Lightning Gaming Ports. ** USB32_34 supports Ultra USB Power.
• Software and UEFI Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - Killer Control Center - ASRock Polychrome SYNC * UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash * These utilities can be downloaded from ASRock Live Update & APP Shop.
• Accessories - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 1 x ARGB Splitter Cable - 1 x Thermistor Cable
• Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB
• OS - Microsoft Windows® 10 64-bit / 11 64-bit
• Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
