Дънна платка ASRock B760M-HDV/M.2

Артикул №: 1000131846

Категория: Компютърни компоненти

97,99 €

✓ Налично в централен склад

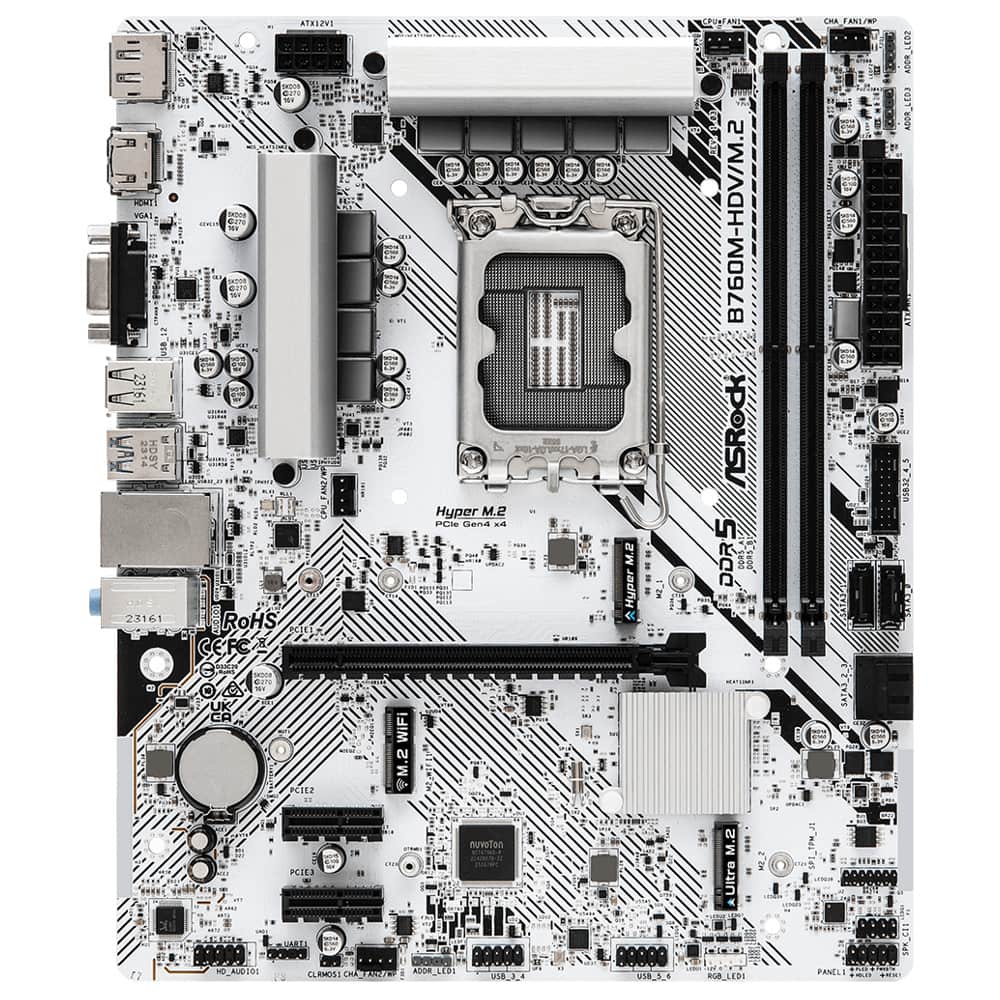

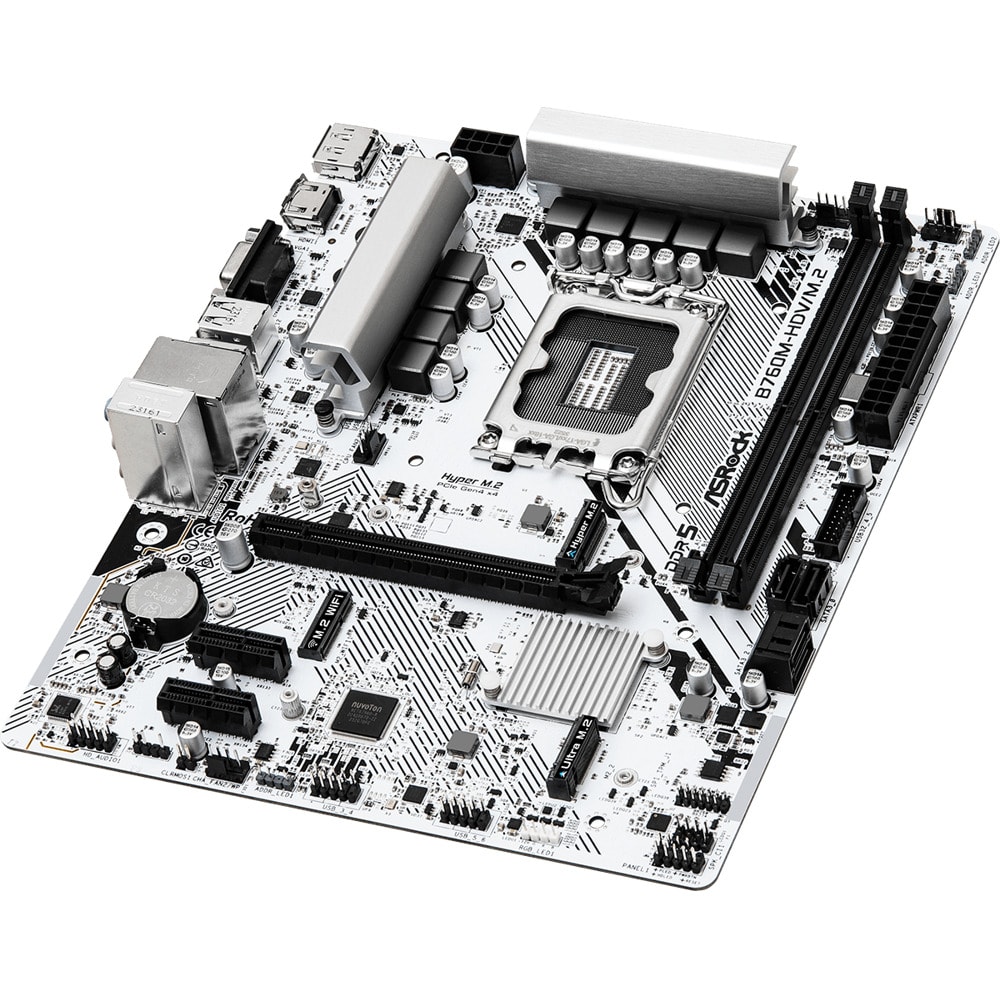

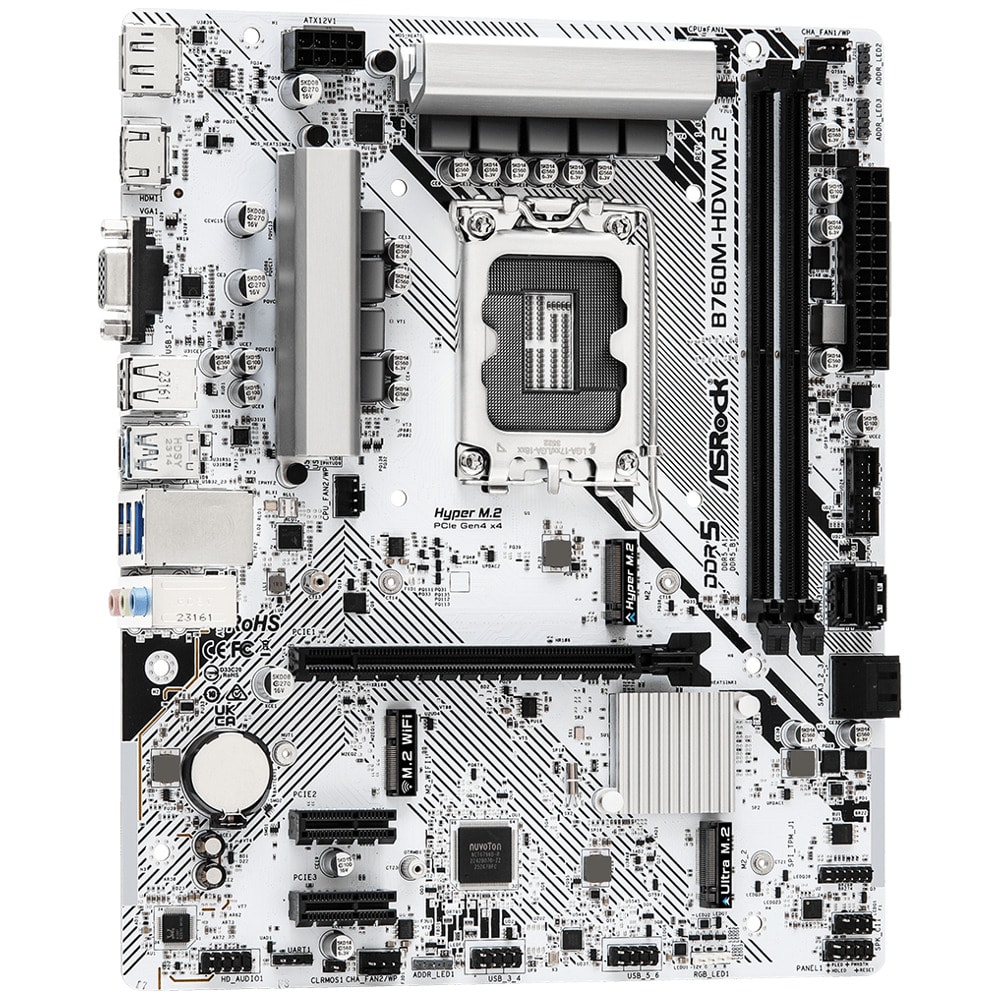

ASRock B760M-HDV/M.2

Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
7+1+1 Power Phase
Supports DDR5 7200MHz (OC)
1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Graphics Output Options: HDMI, DisplayPort, D-Sub
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4)

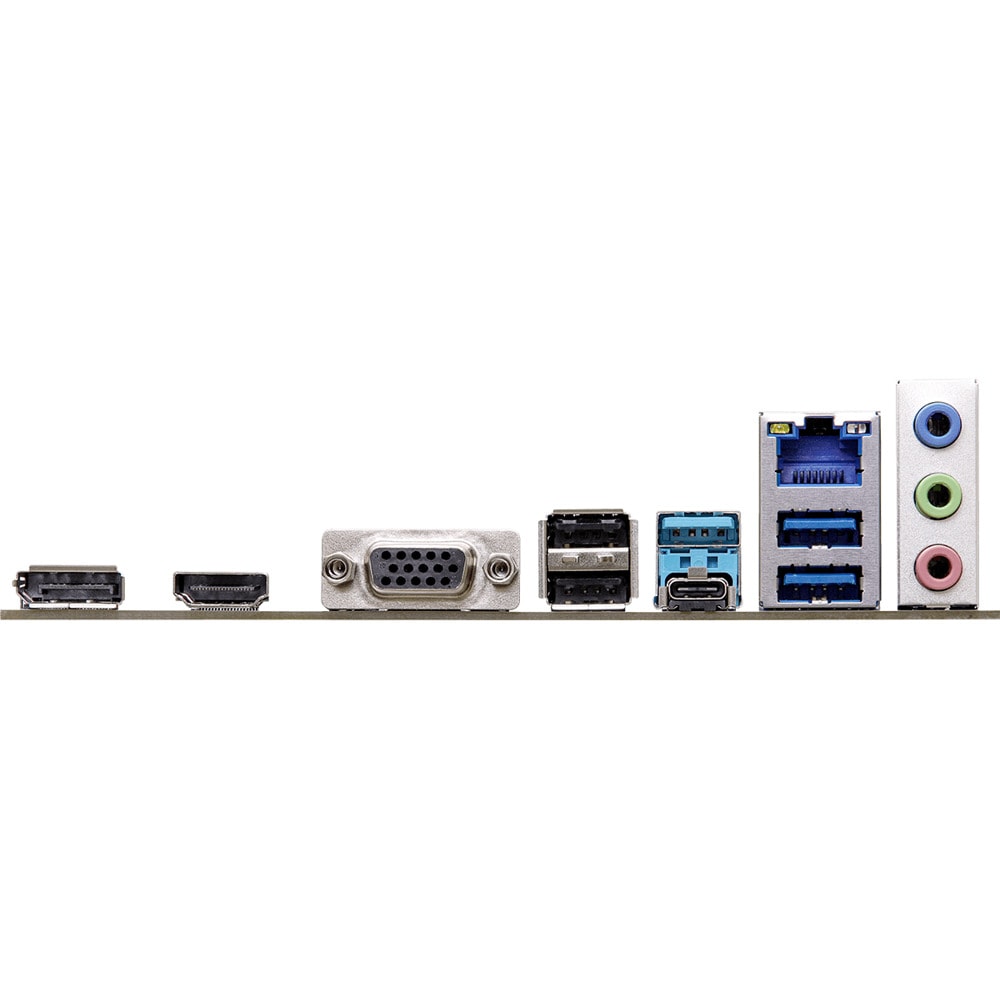

1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
Dragon 2.5G LAN
Supports ASRock Auto Driver Installer

Chipset - Intel B760	Да
BIOS -	128Mb AMI UEFI Legal BIOS with GUI support
Audio -	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Slots CPU	- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode * Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) * - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module * Supports NVMe SSD as boot disks
Storage Chipset	- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode * - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes ** - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD) ** Supports NVMe SSD as boot disks
Form Factor - Micro ATX Form Factor	9.6-in x 7.9-in, 24.4 cm x 20.1 cm
OS - Microsoft Windows®	10 64-bit / 11 64-bit
