ASRock

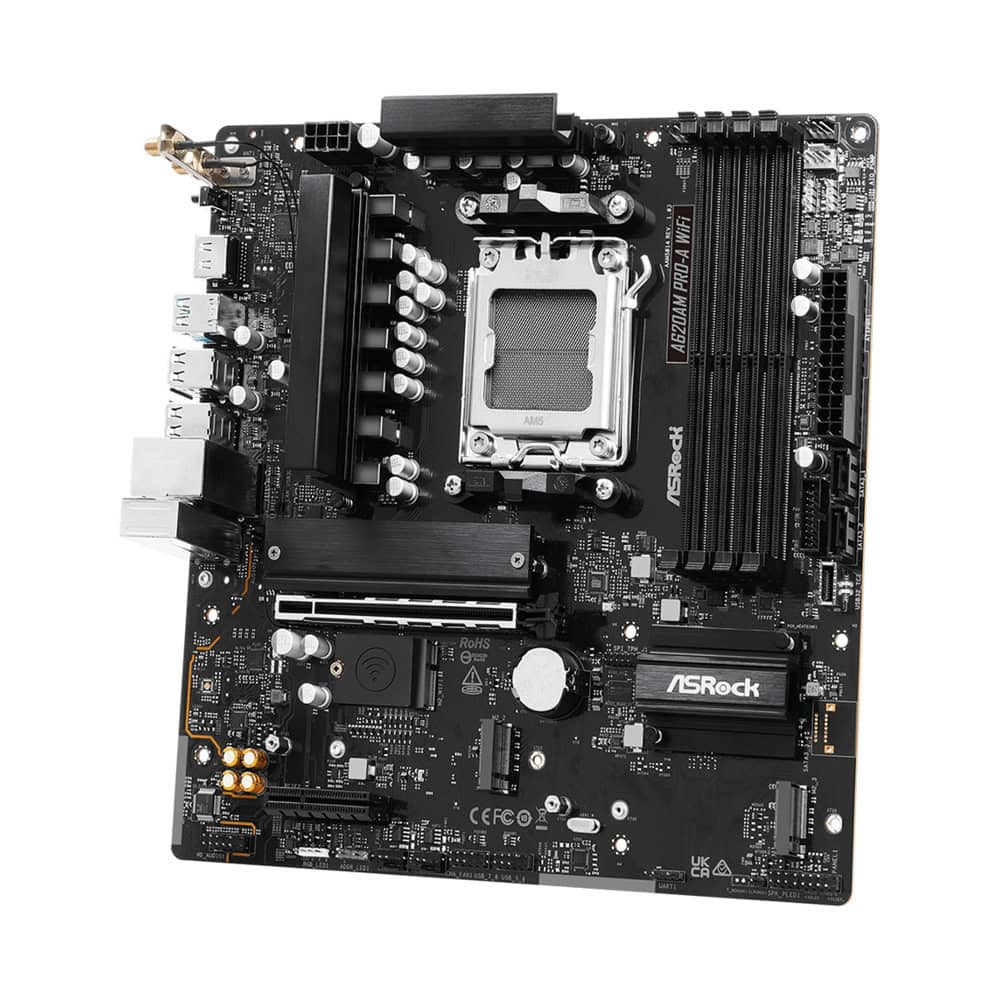

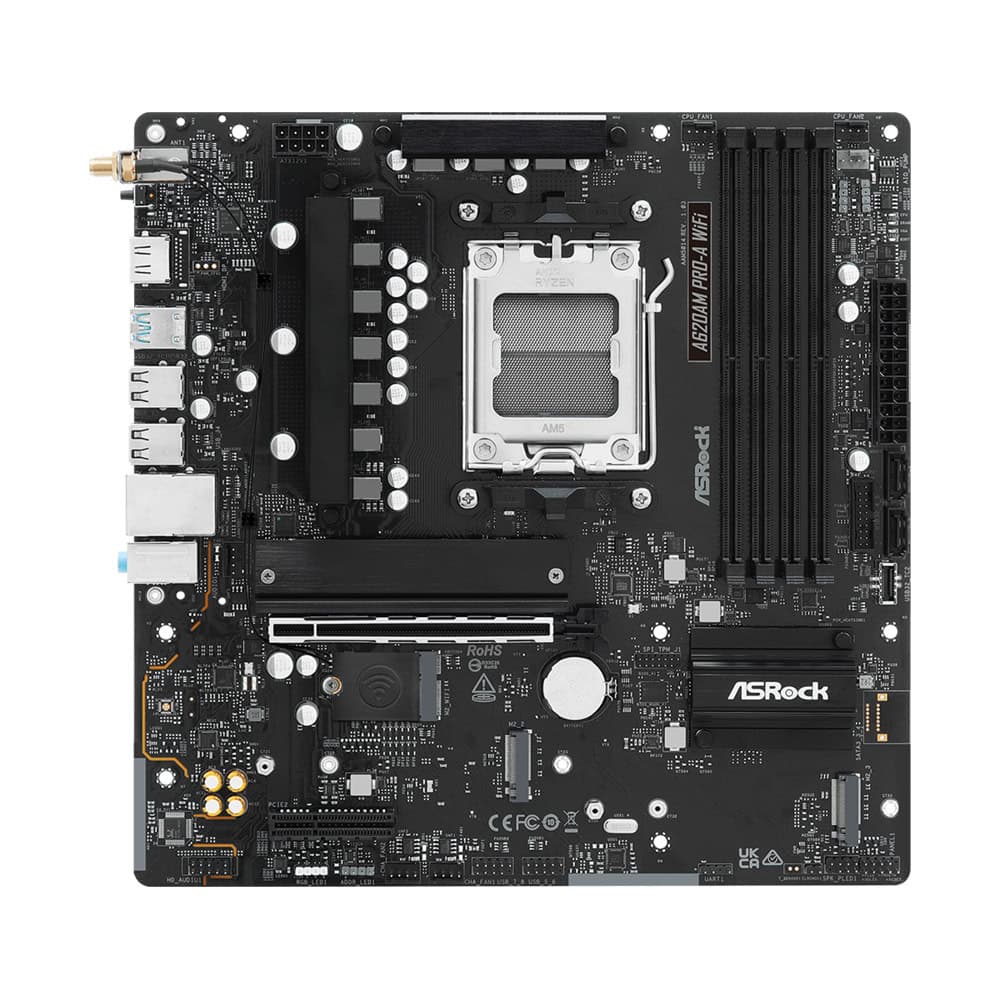

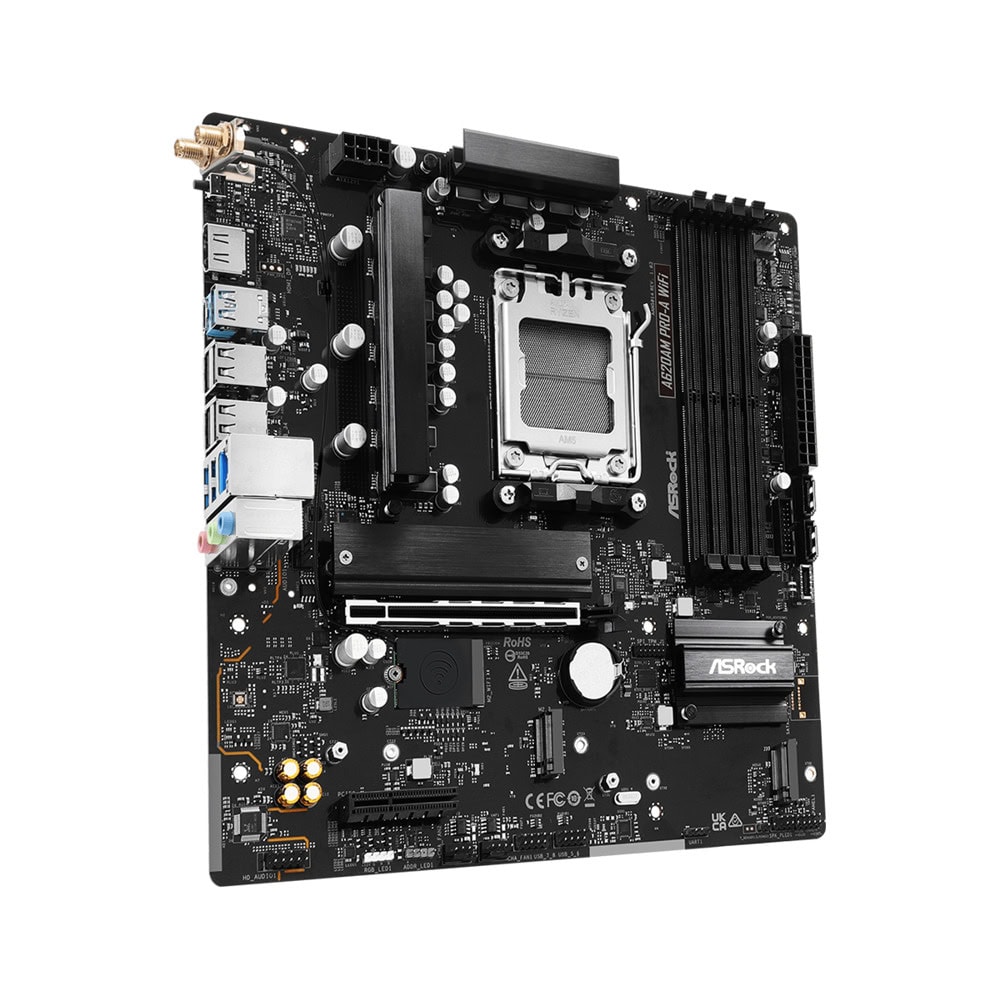

Дънна платка ASRock A620AM PRO-A WIFI
Артикул №: 1000143234
Категория:
Компютърни компоненти
121,99 €
✓ Налично във външен склад
A620AM Pro-A WiFi
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 6+2+1 Phase Power Design, Dr.MOS
- 4 x DDR5 DIMMs Supports Dual Channel, up to 8000+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x4
- Graphics Output Options: 1 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 2 Hyper M.2 (PCIe Gen4x4) 1 Ultra M.2 (PCIe Gen3x4) 2 SATA3
- 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front) 5 USB 3.2 Gen1 (3 Rear, 2 Front) 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
- 802.11axe Wi-Fi 6E + Bluetooth
- Supports BIOS Flashback
Unique Feature
Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 6+2+1 Power Phase, Dr.MOS
Ultrafast Connectivity
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
Характеристики
| Чипсет | Да |
| AMD A620A | Да |
| Памет | Да |
| Dual Channel DDR5 Memory Technology | Да |
| X DDR5 DIMM Slots | 4 |
| Max. capacity of system memory | 256GB |
| BIOS | Да |
| 256Mb AMI UEFI Legal BIOS with GUI support | Да |
| Графика | Да |
| Аудио | Да |
| CH HD Audio (Realtek ALC897 Audio Codec) | 7.1 |
| Мрежова карта | Да |
| Gigabit LAN 10/100/1000/2500 Mb/s | 2.5 |
| Dragon RTL8125BG | Да |
| Supports Dragon | 2.5G LAN Software |
| Smart Auto Adjust Bandwidth Control | Да |
| Visual User Friendly UI | Да |
| Visual Network Usage Statistics | Да |
| User Customized Priority Control | Да |
| Wireless LAN | Да |
| 802.11axe Wi-Fi 6E Module | Да |
| Supports IEEE | 802.11a/b/g/n/ac/ax/axe |
| Supports Dual-Band | 2x2 with extended 6GHz band support* |
| 2 antennas to support 2 (Transmit) | x 2 (Receive) diversity technology |
| Supports Bluetooth | 5.2 |
| Supports MU-MIMO | Да |
| A 6GHz compatible router is required for | 6E functionality |
| Slots | Да |
| Процесор | - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* |
| Чипсет | - 1 x PCIe 3.0 x4 Slot (PCIE2), supports x2 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) *PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. Supports NVMe SSD as boot disks Storage |
| Процесор | - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Чипсет | - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors *M2_1 is the first priority for M.2 installation. M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors. Supports NVMe SSD as boot disks RAID - Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10 USB |
| Процесор | - 1 x USB 3.2 Gen1 Type-C (Rear) - 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2)) |

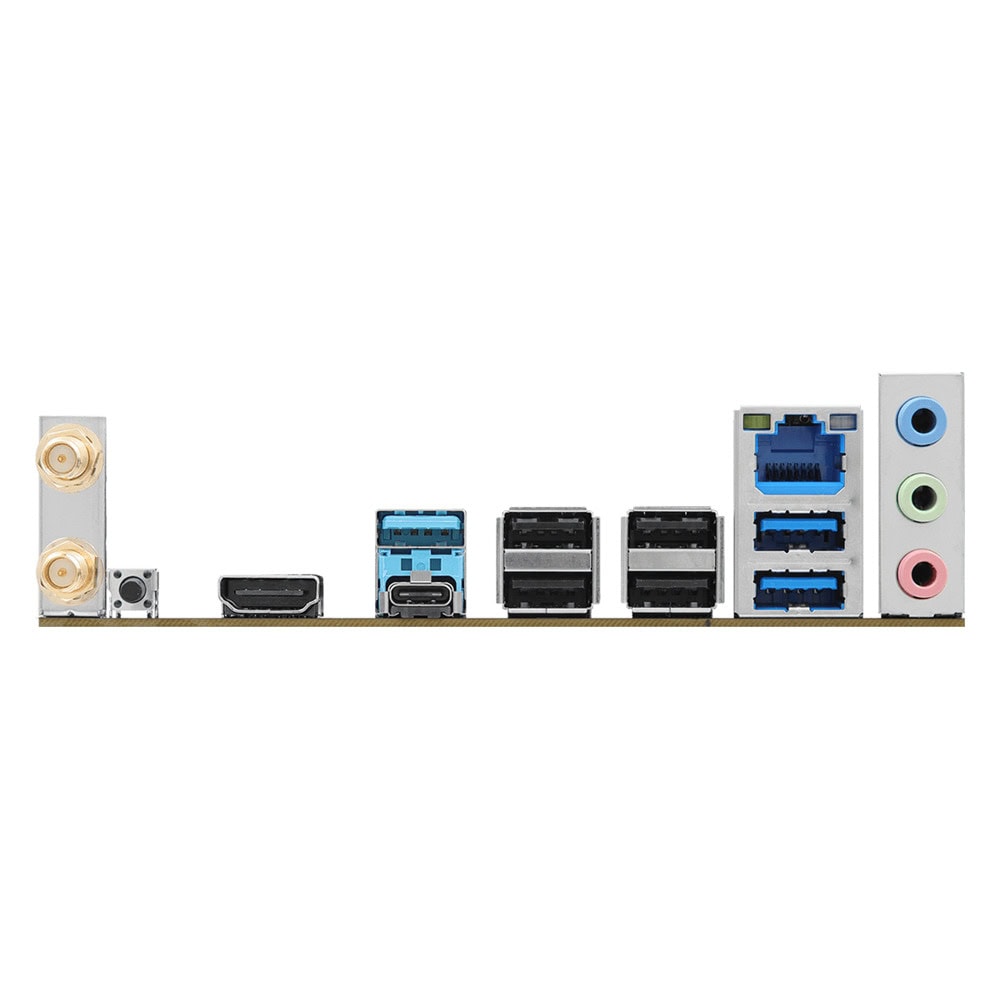

| Чипсет | - 1 x USB 3.2 Gen1 Type-C (Front) - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front) - 8 x USB 2.0 (4 Rear, 4 Front) *All USB ports support ESD Protection Connector - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2 and CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2 and CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O - 2 x Antenna Ports - 1 x HDMI Port - 3 x USB 3.2 Gen1 Type-A Ports - 1 x USB 3.2 Gen1 Type-C Port - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm OS - Microsoft Windows® 10 64-bit / 11 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
