Barebone сървър ASRock Rack 1U2N2G-AM5/2T

Артикул №: 1000133174

Категория: Настолни компютри

3 335,99 €

✓ Налично във външен склад

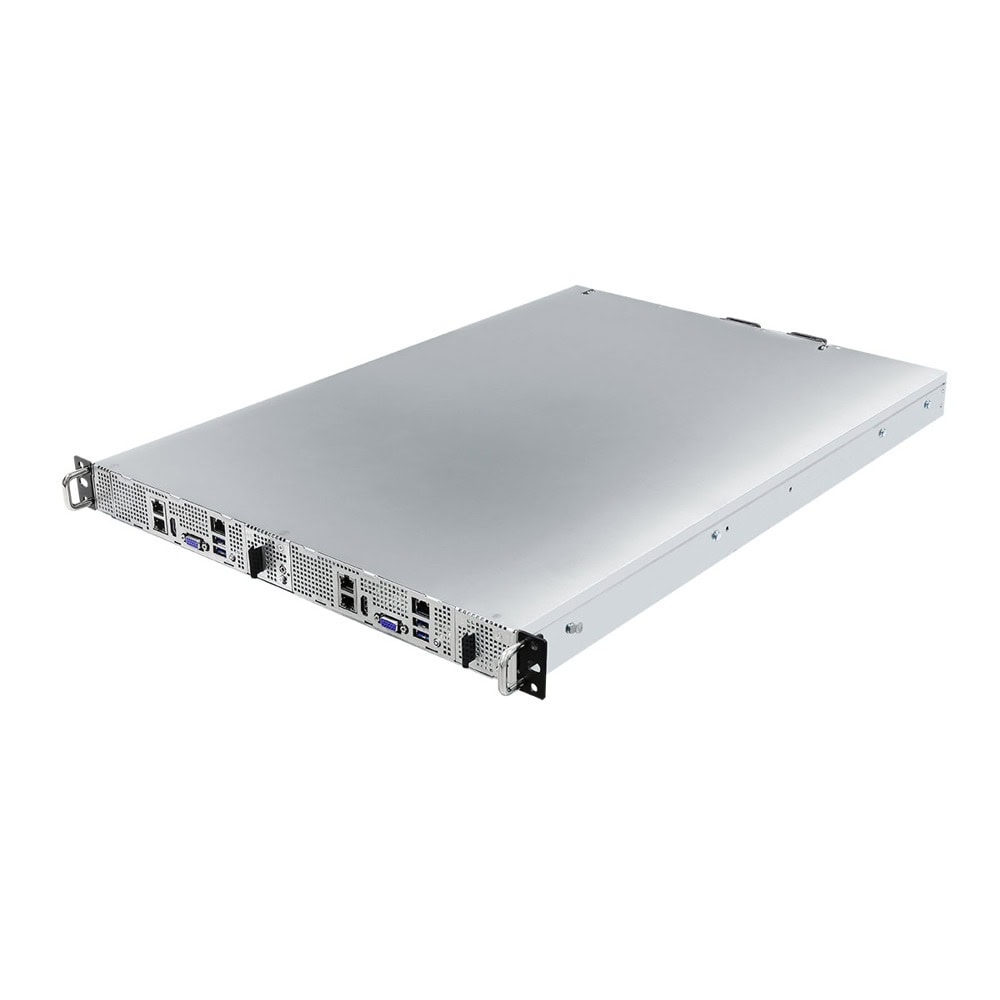

ASRock Rack 1U2N2G-AM5/2T

1U chassis with 2 nodes, 1+1 80-PLUS Platinum, 1600W CRPS
Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
1 FH dual-slot PCIe5.0 x16 per node
Supports 1 M.2 (PCIe4.0 x4) per node
2 RJ45 (10GbE) by Broadcom BCM57416 per node
Remote management (IPMI)

Form Factor1U Rackmount	Да
Dimensions650 x	438 x 43.5 mm (25.6'' x 17.2'' x 1.7'')
Support MotherboardAM5D4ID-2T/BCM	Да
Front Panel	Да
ButtonsUID w/LED, Power w/LED	Да
LEDsSystem Fail	Да
IPMI LAN1 dedicated IPMI	Да
External Drive Bay / Storage	Да
Захранване	Да
Type1+1 CRPS	Да
Efficiency80-PLUS Platinum	Да
AC InputLow-line	100-127Vac, 60/50Hz; High-line: 200-240Vac, 60/50Hz
System Fan	Да
Fan8 PWM Hot-swap	40x56 mm fans
Processor System	Да
SocketSingle Socket AM5 (LGA	1718)
Thermal Design PowerUp to	120W
ChipsetKNOLL3 X300	Да
System Memory	Да
Supported DIMM Quantity4 DIMM slots (2DPC)	Да
Supported TypeDDR5	288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM48GB	Да
Max. DIMM Frequency5600 MHz (1DPC);	3600 MHz (2DPC)
Voltage1.1V	Да
PCIe Expansion Slots	Да
Ethernet	Да
Additional GbE ControllerBroadcom BCM57416	2 RJ45 (10GbE)
Server Management	Да
BMC ControllerASPEED AST2600	Да
Графика	Да
ControllerASPEED AST2600	1 DB15 (VGA) AMD Processors with Graphics: 1 HDMI
System BIOS	Да
BIOS TypeAMI UEFI BIOS;	256Mb (32MB) SPI Flash ROM
Hardware Monitor	Да
TemperatureCPU, DDR, MB, Card Side	Да
Supported OS	Да
OSMicrosoft® Windows	Windows® 10 (64 bit) Windows® 11 (64 bit) Linux: UBuntu 22.04.2 (64 bit) * On the Windows® system, Raid mode supports UEFI Boot only. * The Linux system doesn't support Raid Mode.
