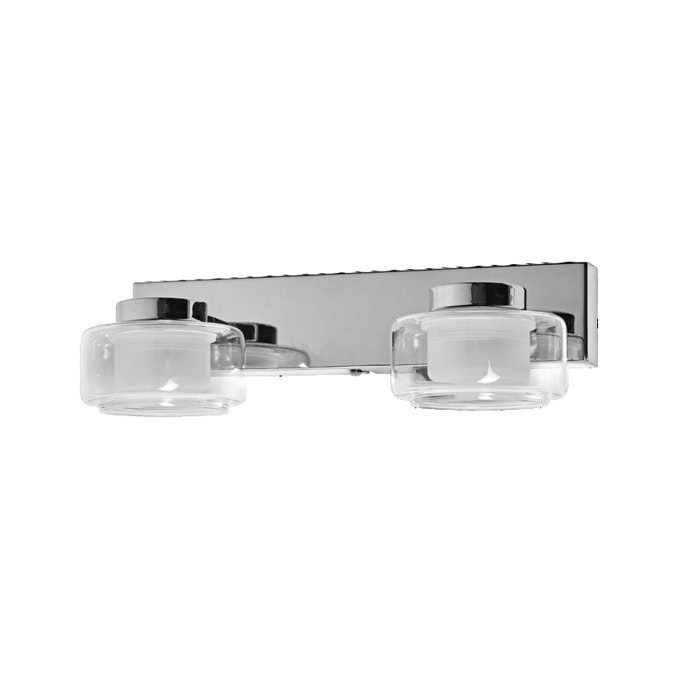

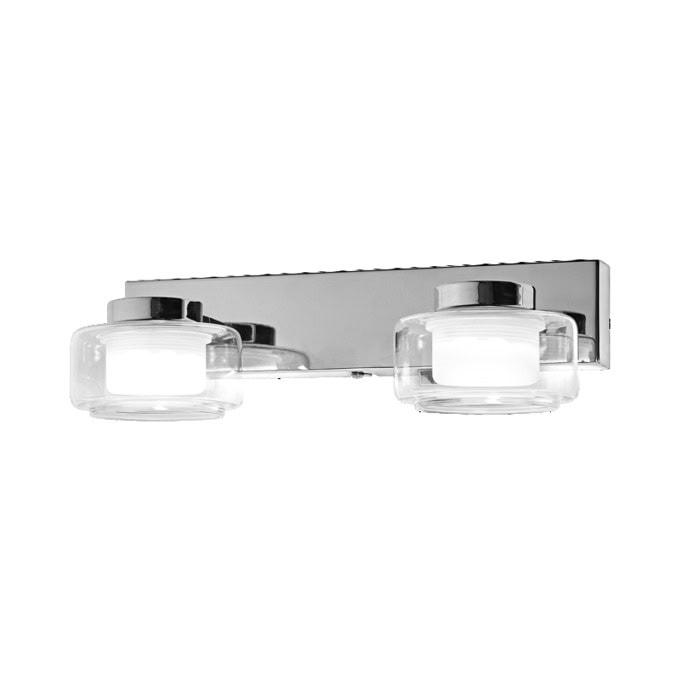

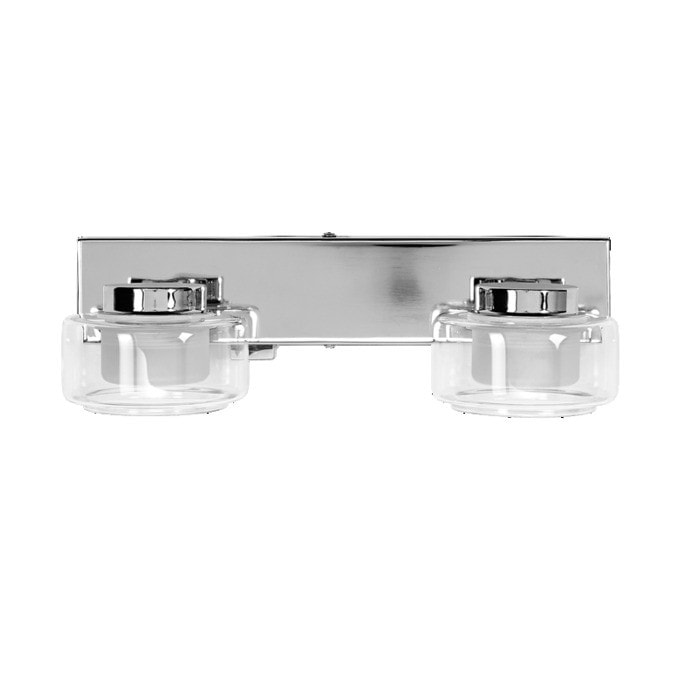

Аплик Ledvance Orbis Flame Click CCT

Product benefits

• Stylish and modern design
• Easy to install and use
• Highly versatile due to selectable CCT
• Long lifetime thanks to LED technology

Areas of application

• Indoor
• Living areas (living rooms, dining rooms, bedrooms etc.)
• Bathrooms (IP44)

Product features

• Type of protection: IP44
• Lifetime up to 30,000 h
• Color temperature: 3,000 K (Warm White) or 4,000 K (Neutral White)
• Click-CCT version: color temperature adjustable in two steps by repeated switching
• Housing material: aluminum
• Glass diffuser

Safety advice

• Luminaire must be disconnected from mains during installation, maintenance and cover removal
• Check wall-ceiling for suitability. If uncertain, seek professional advice.
• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.

Technical data

Electrical data

Nominal wattage11.00 W

Nominal voltage220…240 V

Mains frequency50…60 Hz

Nominal current63.000 mA

Inrush current0.063 A

Inrush current time Th50192 µs

Max. number of luminaires per miniature circuit breaker B16203

Max. number of luminaires per miniature circuit breaker C10126

Max. number of luminaires per miniature circuit breaker C16203

Power factor λ> 0.5

Total harmonic distortion68 %

Protection classII

Operating modeExternal LED driver

Photometrical data

Luminous flux700 lm

Total luminous flux of contained light sources870 lm

Luminous efficacy64 lm/W

Color temperature3000 … 4000 K

Reference control setting of contained light source (Kelvin)3000 K

Light color (designation)Warm White, Cool White

Color rendering index Ra> 80

Standard deviation of color matching≤6 sdcm

Flickering metric (Pst LM)≤1.0

Stroboscope effect metric (SVM)≤0.4

Photobiological safety group acc. to EN62778RG0

Photobiological safety group acc. to EN62471RG0
