MikroTik
Антена MikroTik RBLHG-5HPnD-XL4pack
Артикул №: 1000136499
Категория:
Мрежови адаптери
93,99 €
✓ Налично във външен склад

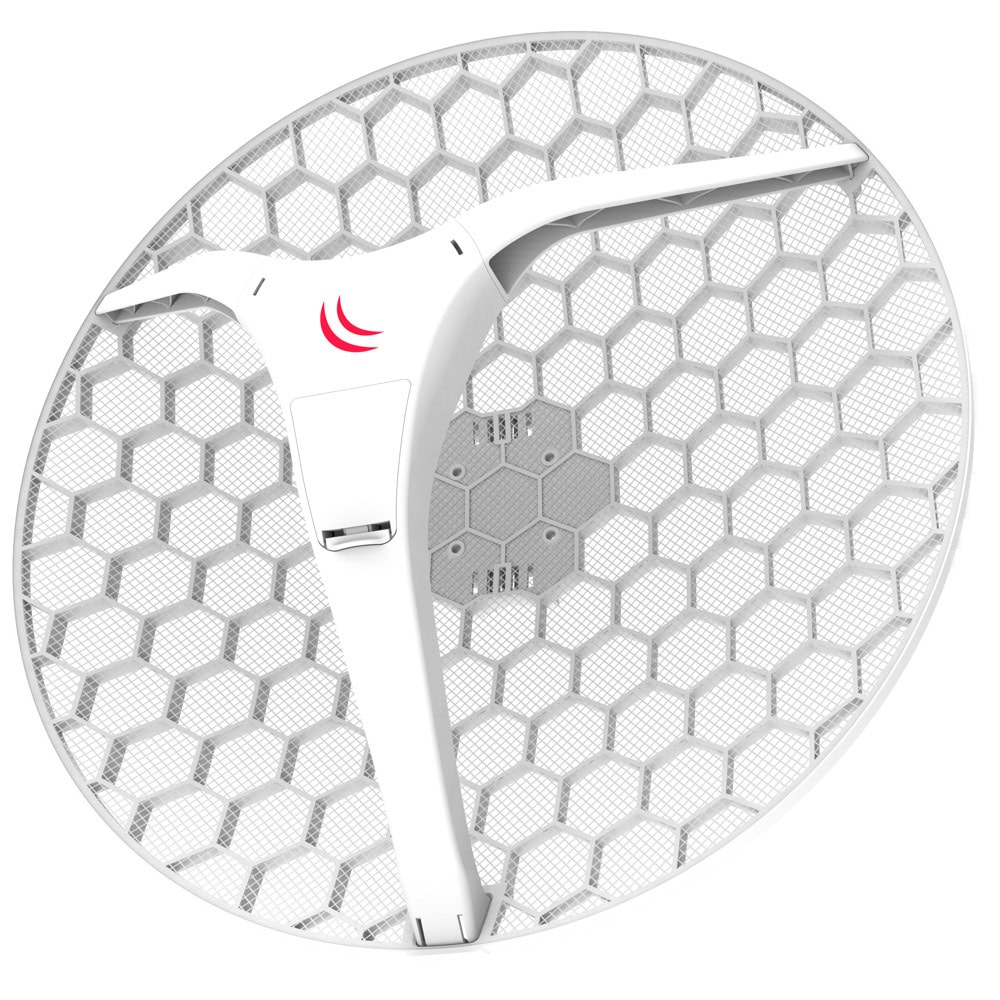

The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power, designed to reach up to 40km in point-to-point setups at full speed.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
We have two versions available.
LHG XL HP5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
LHG XL HP5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Характеристики
| Product code RBLHG-5HPnD-XL | Да |
| Architecture MIPS-BE | Да |
| CPU AR9344 | Да |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions Ø | 550 x 245 mm |
| License level | 3 |
| Operating System RouterOS | Да |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type FLASH | Да |
| Tested ambient temperature -40 to | 70° C |
| Powering | Да |
| Details | Да |
| Max Power consumption | 7W |
| Number of DC inputs | 1 (PoE-IN) |
| PoE in Passive PoE | Да |
| PoE in input Voltage | 10-28 V |
| Безжична | Да |
| Details | Да |
| Безжична | 5 GHz number of chains 2 |
| Безжична | 5 GHz standards 802.11a/n |
| Antenna gain dBi for | 5 GHz 27 |
| Безжична | 5 GHz chip model AR9344 |
| Ethernet | Да |
| Details | Да |
| 10/100 Ethernet ports 1 | Да |
| Wireless specifications | Да |
| GHz Transmit (dBm) Receive Sensitivity | 5 |
| 6MBit/s 28 -96 | Да |
| 54MBit/s 25 -80 | Да |
| MCS0 | 28 -96 |
| MCS7 | 24 -75 |
