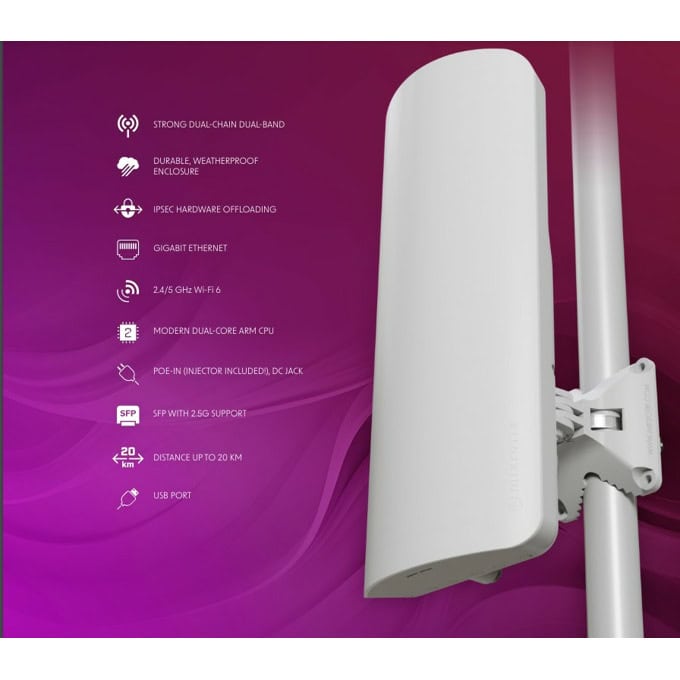

Антена Mikrotik mANTBox ax 15s L22UGS-5HaxD2HaxD-15S
Managing outdoor wireless network has never been easier: mANTBox ax 15s can provide unparalleled wireless point-to-multipoint connectivity for a vast variety of devices over a distance of 20 kilometers!*

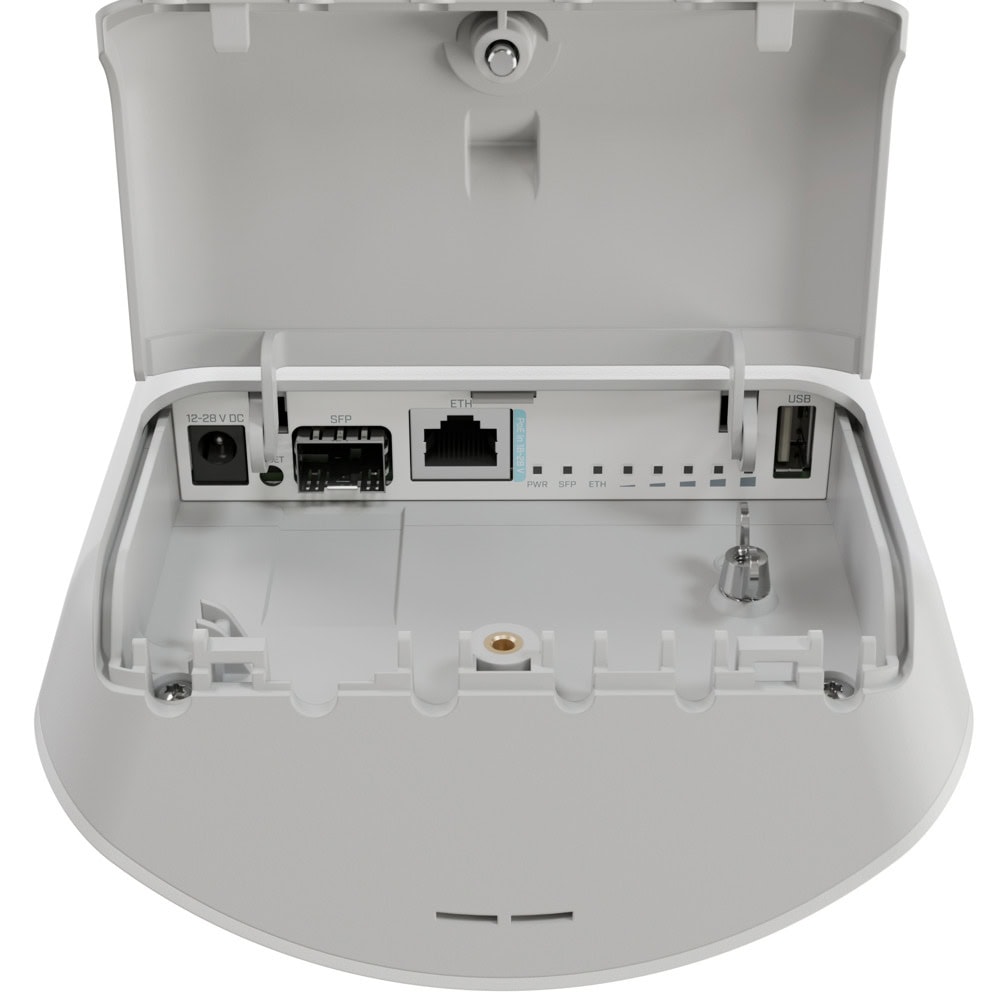

A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.
Upgrading your setup to Wi-Fi 6 offers multiple benefits:
Speed: we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.
Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like bruteforcing and WPA2 handshakecapture deauthentication attacks
Reliability: seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.
Energy efficiency: features like Target Wake Time reduce power consumption in the long run. Better for your wallet and the planet!

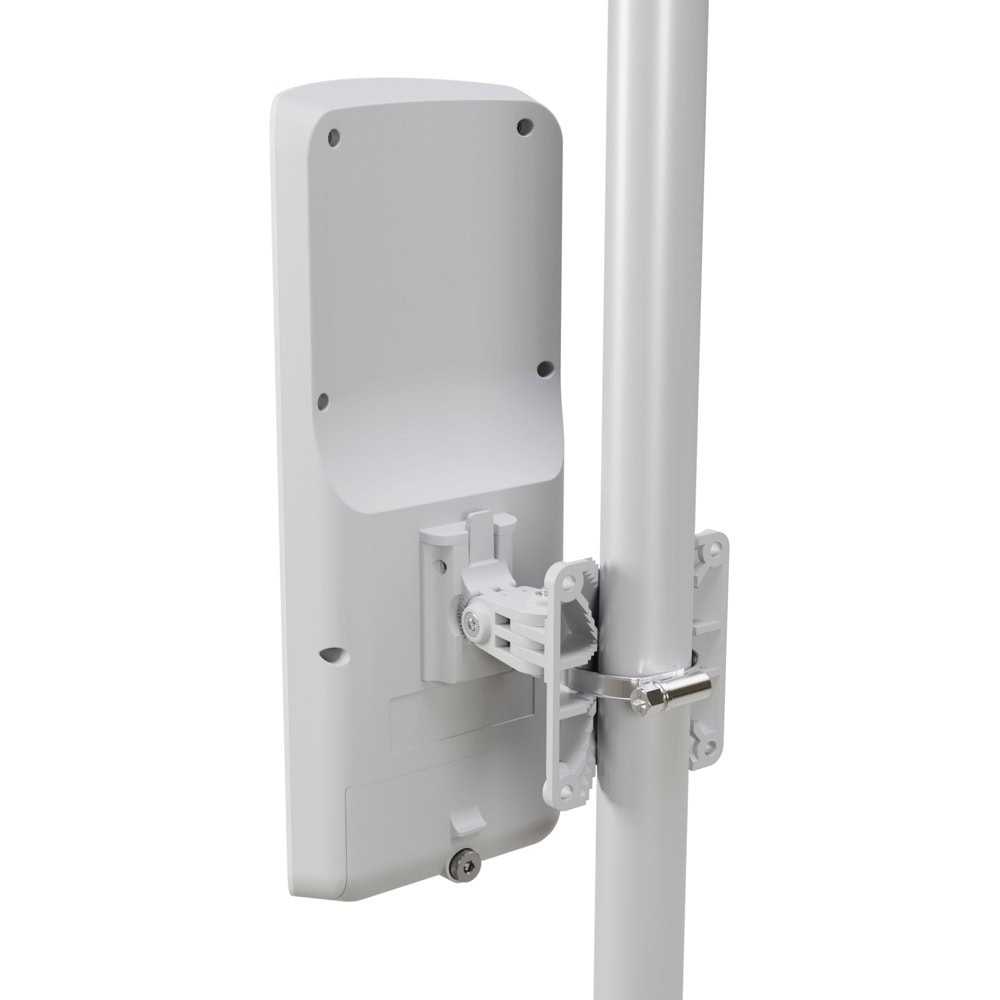

mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro it is possible to perfectly set antenna alignment using an integrated graduated scale.
*It's important to note that while longer links are feasible, their reliability may vary.
Характеристики
| Details | ArchitectureARM CPUIPQ-5010 CPU core count2 CPU nominal frequency800 MHz RouterOS license4 Operating SystemRouterOS v7 Size of RAM256 MB Storage size128 MB Storage typeNAND MTBFApproximately 200'000 hours at 25C Tested ambient temperature-40°C to 70°C |
Powering
| Details | Number of DC inputs2 (DC jack, PoE-IN) DC jack input Voltage12-28 V Max power consumption21 W Max power consumption without attachments11 W Cooling typePassive PoE inPassive PoE PoE in input Voltage18-28 V |
Wireless specifications
| Details | Wireless 2.4 GHz Max data rate574 Mbit/s Wireless 2.4 GHz number of chains2 Wireless 2.4 GHz standards802.11b/g/n/ax Antenna gain dBi for 2.4 GHz12 Wireless 2.4 GHz chip modelIPQ-5010 Wireless 2.4 GHz generationWi-Fi 6 Wireless 5 GHz Max data rate2400 Mbit/s Wireless 5 GHz number of chains2 Wireless 5 GHz standards802.11a/n/ac/ax Antenna gain dBi for 5 GHz15 Wireless 5 GHz chip modelQCN-6102 Wireless 5 GHz generationWi-Fi 6 |
| 2.4 GHz | 1MBit/s27-100 11MBit/s27-94 6MBit/s29-96 54MBit/s27-80 MCS029-96 MCS726-75 MCS924-70 MCS1122-67 |
| 5 GHz | 6MBit/s28-96 54MBit/s26-80 MCS028-96 MCS725-75 MCS923-70 MCS1120-67 |
Ethernet
| Details | 10/100/1000 Ethernet ports1 |
Fiber
| Details | SFP ports1 (2.5G supported) |
Peripherals
| Details | Number of USB ports1 USB Power ResetYes USB slot typeUSB type A Max USB current (A)1.5 |
Other
| Details | PCB temperature monitorYes Voltage MonitorYes BeeperYes |
Certification & Approvals
| Details | CertificationCE, FCC, IC, EAC, ROHS IP55 |
