Cambium Networks

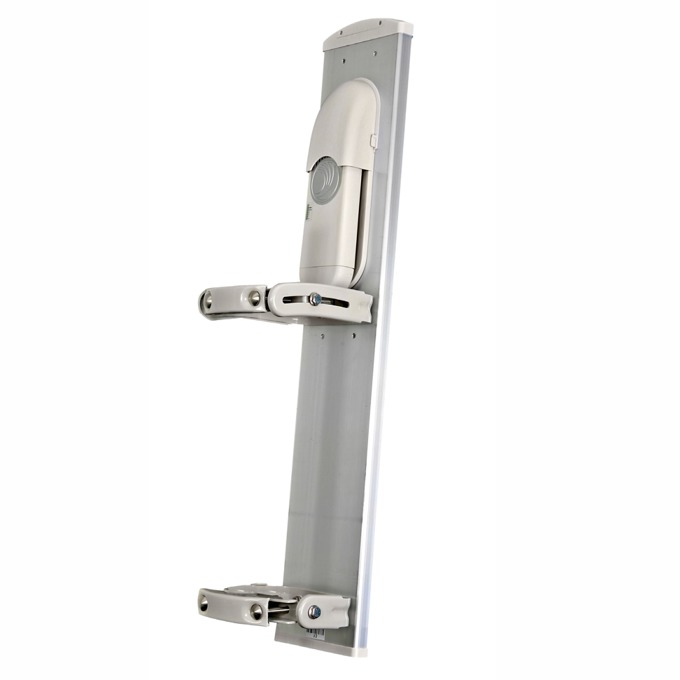

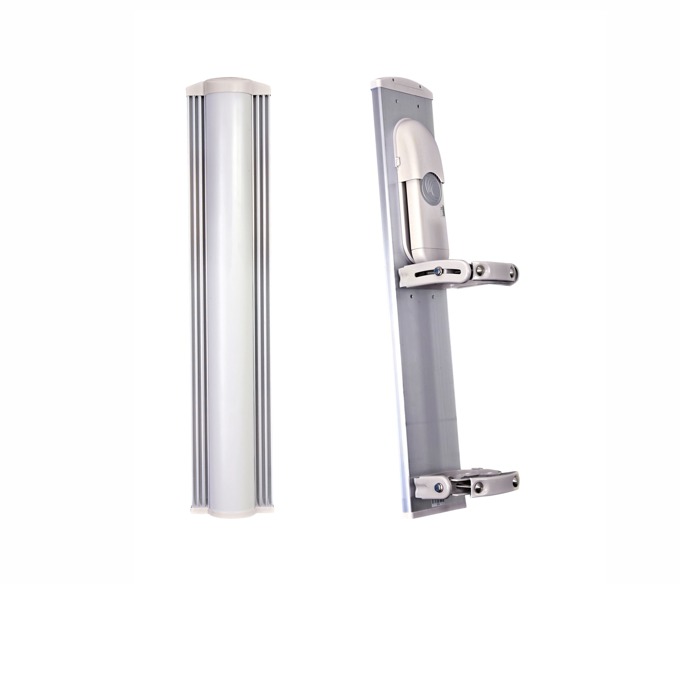

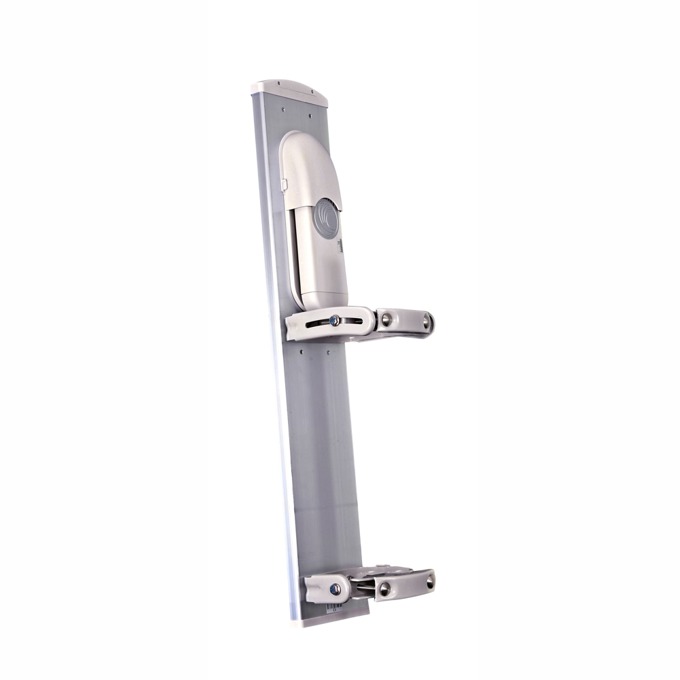

Антена Cambium Networks ePMP 1000 (C050900D003A)
Артикул №: 1000110534
Категория:
Мрежови адаптери
186,99 €
✓ Налично във външен склад
Характеристики
| FREQUENCY RANGE | 5150 – 5875 MHz |
| ANTENNA TYPE | ACCESS POINT SECTOR |
| GAIN | 15 dBi |
| VSWR | 1.6:1 MAX |
| PORT TO PORT ISOLATION | 25 dB |
| 6DB BEAMWIDTH-AZIMUTH | 90° |
| 3DB BEAMWIDTH-AZIMUTH | 65° |
| 3DB BEAMWIDTH-ELEVATION | 8° |
| POLARIZATION | Dual Linear, Horizontal / Vertical |
| MAXIMUM INPUT POWER | 5W |
| INPUT IMPEDANCE | 50 Ohms |
| FRONT-TO-BACK RATIO | >32 dB |
| CROSS POLARIZATION | >18 dB |
| MECHANICAL SIZE (MM) | 827h x 161w x 59d (excl AP & bracket) 827h x 161w x 231d (incl AP & bracket) ANTENNA WEIGHT: 3.1 kg (6.8 lb), w/o bracket kit MOUNTED ANT WEIGHT (W/ AP): 5.5 kg (12.1 lb) ANTENNA CONNECTOR: 2 x male RP-SMA WIND SURVIVAL: 190 km/h (118 mph) |
| WIND LOADING (@216 KM/H) | FRONT: 318 N (72 LBF) SIDE: 160 N (36 LBF) POLE MOUNTING HARDWARE: QUICK RELEASE, 1.5” TO 4.5” DIA. POLE MECHANICAL DOWNTILT: -3° TO 12° |
