Адаптер Axagon RVD-VGN
Артикул №: 1000014242
Категория:
HDMI, DP, DVI, VGA
14,99 €
✓ Ограничена наличност

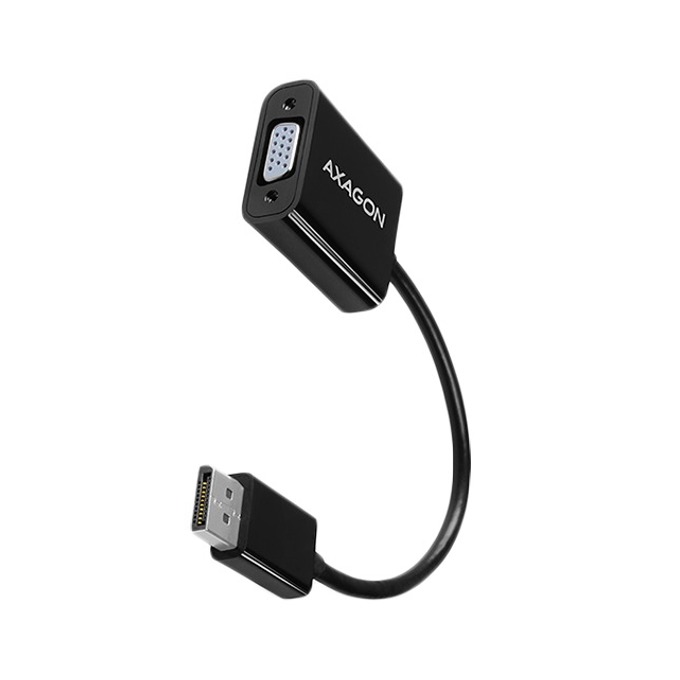

Axagon RVD-VGN
DisplayPort -> VGA active adapter AXAGON RVD-VGN for connecting an older VGA monitor/TV/ projector to a computer or other device with Display Port output.
Without any installation or setup, the hardware converter ensures image transfer up to resolution 1920x1200 (WUXGA) at 60Hz refresh rate.
The reduction is only one-way, i.e. DP to VGA converter, not the opposite way.
Input:
• DisplayPort 1.1a digital interface
• DisplayPort (M) male connector
Output:
• Analog VGA interface
• D-Sub 15-pin (F) female connector
Supported resolutions:
DisplayPort -> VGA active adapter AXAGON RVD-VGN for connecting an older VGA monitor/TV/ projector to a computer or other device with Display Port output.
Without any installation or setup, the hardware converter ensures image transfer up to resolution 1920x1200 (WUXGA) at 60Hz refresh rate.
The reduction is only one-way, i.e. DP to VGA converter, not the opposite way.
Input:
• DisplayPort 1.1a digital interface
• DisplayPort (M) male connector
Output:
• Analog VGA interface
• D-Sub 15-pin (F) female connector
Supported resolutions:
Технически характеристики
| • max. 1920x1200 (16 | 10) WUXGA |
| • 1920 x 1080 (16 | 9) Full HD/1080p |
| • 1680 x 1050 (16 | 10) WSXGA+ |
| • 1600 x 1200 (4 | 3) UXGA |
| • 1600 x 900 (16 | 9) HD+ |
| • 1440 x 900 (16 | 10) WXGA+ |
| • 1400 x 1050 (4 | 3) SXGA+ |
| • 1366 x 768 (16 | 9) WXGA |
| • 1280 x 1024 (5 | 4) SXGA |
| • 1280 x 960 (4 | 3) SXGA- |
| • 1280 x 800 (16 | 10) WXGA |
| • 1280 x 768 (5 | 3) WXGA |
| • 1280 x 720 (16 | 9) HD/WXGA/720p |
| • 1152 x 864 (4 | 3) XGA+ |
| • 1024 x 768 (4 | 3) XGA |
| • 800 x 600 (4 | 3) SVGA |
| • 640 x 480 (4 | 3) VGA |
| • Operating temperature | 0 ~ 40°C, |
